SKU: FLCTEY40-XL-INA

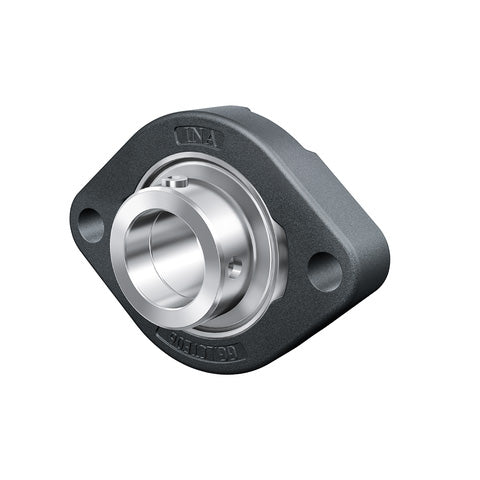

INA FLCTEY40XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 40mm Bore
INA FLCTEY40XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 40mm Bore
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
In stock
Price Break
4+
CHF 44.46
9+
CHF 41.96
19+
CHF 41.46
29+
CHF 40.96
39+
CHF 40.46
49+
CHF 39.96
59+
CHF 37.46
69+
CHF 36.96
79+
CHF 36.46
89+
CHF 35.96
99+
CHF 34.97
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. Note: This housing unit does not have a relubrication facility. Benefits: Grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- FLCTEY
- Bolt Hole Centres:
- 119mm

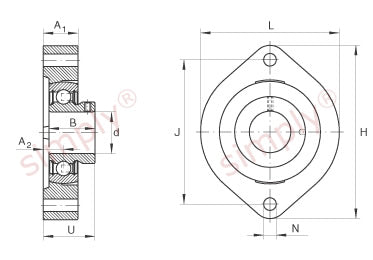

Technical
Technical
| d | 40mm |
|---|---|
| H | 150mm |
| U | 42.5mm |
| A1 | 24mm |
| A2 | 13.5mm |
| B | 39.5mm |
| J | 119mm |
| L | 100mm |
| N | 14mm |
| Mass | 1.18 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | LCTE08 |
| Designation of bearing | GAY40-XL-NPP-B |
