SKU: FNL511B-SKF

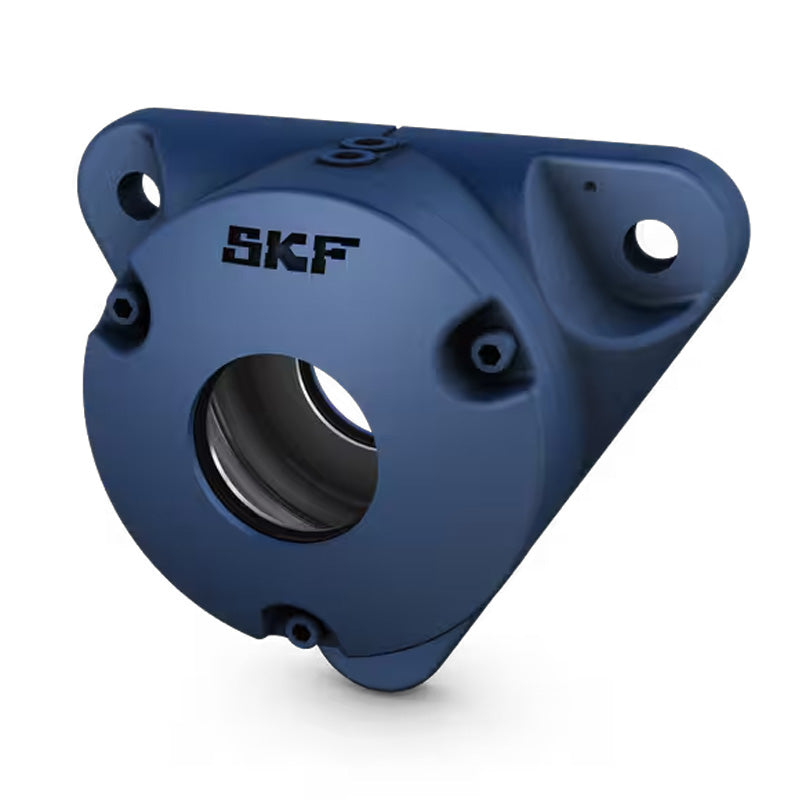

SKF FNL511B Cast Iron Split Three Bolt Flanged Housing
SKF FNL511B Cast Iron Split Three Bolt Flanged Housing
Regular price
CHF 187.31
ex VAT
Regular price
Sale price
CHF 187.31
ex VAT
In stock
Price Break
10+
CHF 166.71
19+
CHF 157.34
29+
CHF 155.47
39+
CHF 153.59
49+
CHF 151.72
74+
CHF 149.85
99+
CHF 140.48
199+
CHF 138.61
249+
CHF 136.74
499+
CHF 134.86
999+
CHF 131.12
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Style:
- FNL
- Pitch Circle Diameter:
- 170mm
- Belt Pitch Length Approx:
- 170mm

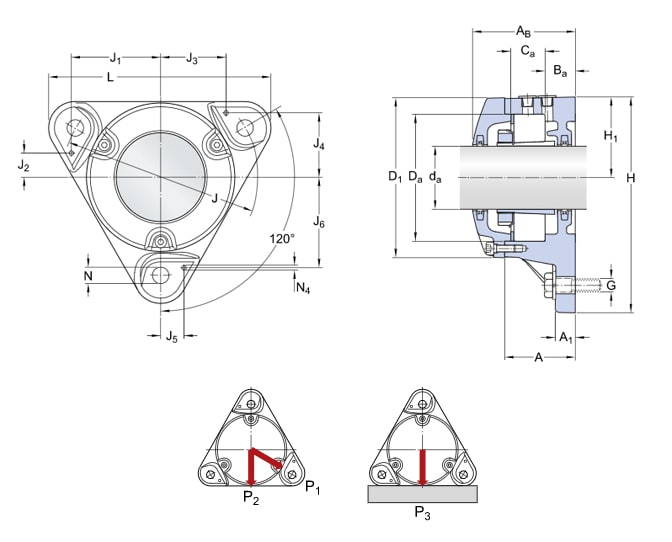

Technical
Technical
| da | 50mm |
|---|---|
| Ca | 27mm |
| Da | 100mm |
| A | 56mm |
| A1 | 15mm |
| AB | 82mm |
| Ba | 24mm |
| D | 127mm |
| H | 172.5mm |
| H1 | 65mm |
| J | 170mm |
| L | 192mm |
| N | 14mm |
| J1 | 77mm |
| J2 | 21mm |
| J3 | 57mm |
| J4 | 56mm |
| J5 | 21mm |
| J6 | 77mm |
| N4 max | 6mm |
| P1 | 110 kN |
| P2 | 80 kN |
| P3 | 110 kN |
| Mass | 4.3 kg |
| Cover bolt, size | 3 x M 6x20 |
| Cover bolt, rec. tightening torque | 10 Nm |
| Appropriate attachment bolt, size G | 12mm |
| Appropriate attachment bolt, rec. tightening torque | 80 Nm |
| Initial grease fill, 20% | 40 g |
| Initial grease fill, 40% | 60 g |
