SKU: FS-10-MB

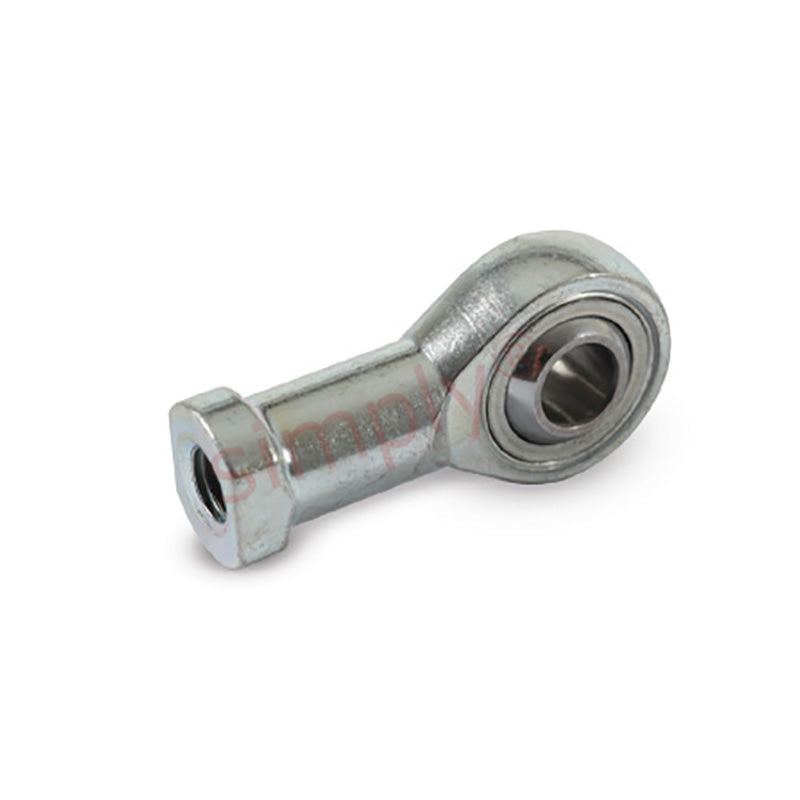

Branded FS-10 Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/8 UNF Thread
Branded FS-10 Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/8 UNF Thread
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
In stock
Price Break
10+
CHF 32.72
19+
CHF 30.88
29+
CHF 30.51
39+
CHF 30.14
49+
CHF 29.78
74+
CHF 29.41
99+
CHF 27.57
199+
CHF 27.20
249+
CHF 26.83
499+
CHF 26.47
999+
CHF 25.73
Description
Description
|
FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c Benefits: High shock loads, extended wear life, no maintenance |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/8 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Material:
- PTFE Lined
Technical
Technical
| Bore size | 5/8 inch |
|---|---|
| Thread | 5/8 UNF |
| W | 0.75 inch |
| H | 0.562 inch |
| D | 1.625 inch |
| L1 | 2.5 inch |
| L2 | 1.5 inch |
| O | 21.3mm |
| AF | 0.875 inch |
| Static load | 32100 N |
