SKU: FY1.11/16TF/VA228-SKF

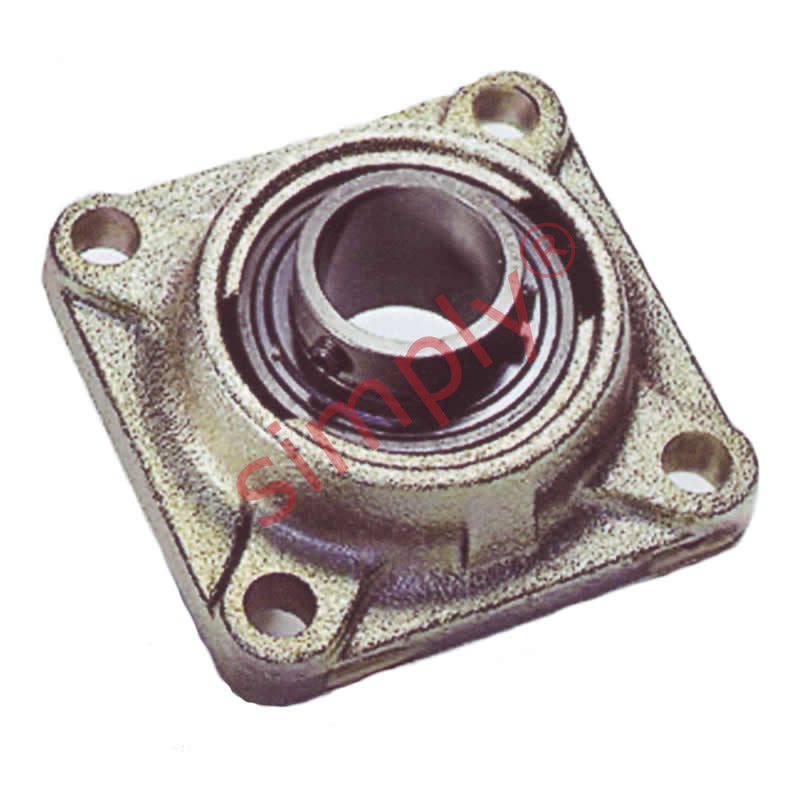

SKF FY1-1-11/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-11/16inch
SKF FY1-1-11/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-11/16inch
Regular price
CHF 321.00
ex VAT
Regular price
Sale price
CHF 321.00
ex VAT
In stock
Price Break
10+
CHF 255.31
19+
CHF 240.97
29+
CHF 238.10
39+
CHF 235.23
49+
CHF 232.36
74+
CHF 229.49
99+
CHF 215.15
199+
CHF 212.28
249+
CHF 209.41
499+
CHF 206.54
999+
CHF 200.81
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 105mm |
| L | 137mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.25 kg |
