SKU: FY1.3/4TF/VA228-SKF

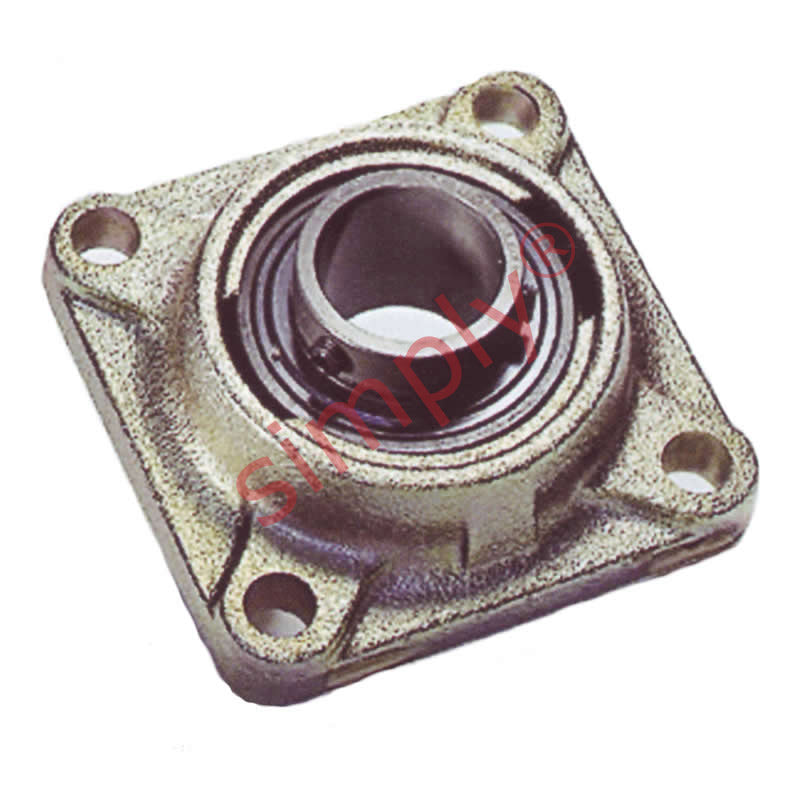

SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch
SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch
Regular price
CHF 319.00
ex VAT
Regular price
Sale price
CHF 319.00
ex VAT
In stock
Price Break
10+
CHF 253.73
19+
CHF 239.48
29+
CHF 236.63
39+
CHF 233.78
49+
CHF 230.93
74+
CHF 228.08
99+
CHF 213.82
199+
CHF 210.97
249+
CHF 208.12
499+
CHF 205.27
999+
CHF 199.57
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 105mm |
| L | 137mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.12 kg |
