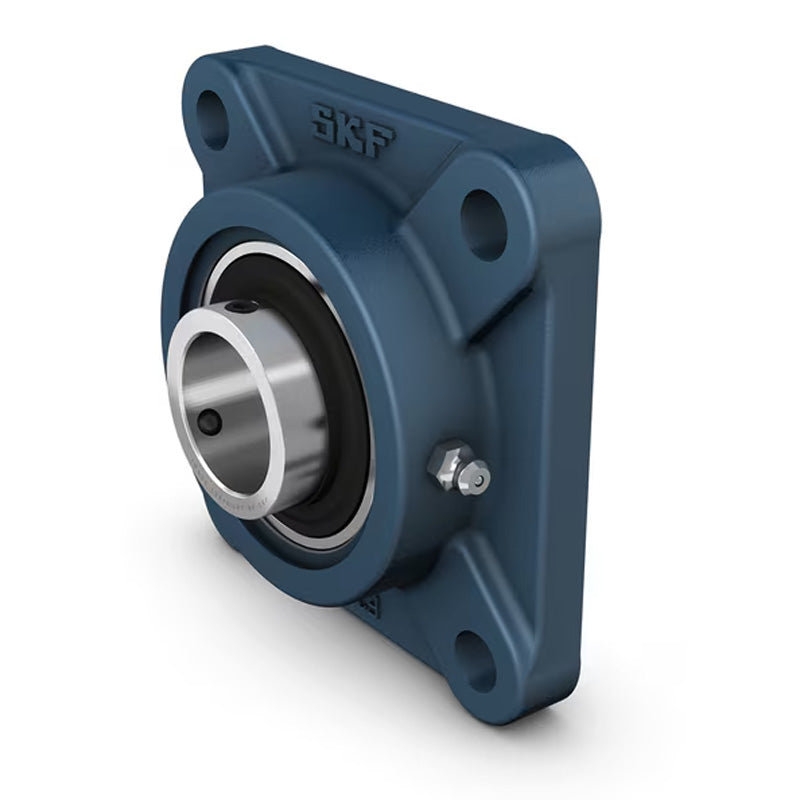

• SKF FY15TF Square Cast Housing with Grub Screw 15mm Insert
1 1

SKU: FY15TF-SKF

SKF FY15TF Square Cast Housing with Grub Screw 15mm Insert

SKF FY15TF Square Cast Housing with Grub Screw 15mm Insert
CHF 27.00 ex VAT
CHF 27.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 21.40
20+ CHF 20.20
30+ CHF 19.96
40+ CHF 19.72
50+ CHF 19.48
75+ CHF 19.24
100+ CHF 18.04
200+ CHF 17.80
250+ CHF 17.56
500+ CHF 17.32
1000+ CHF 16.84
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
15mm
Style:
FY
Bolt Hole Centres:
54mm
Technical
d 15mm
A1 26mm
A2 11mm
B 27.4mm
Da 55.6mm
J 54mm
L 76mm
N 11.5mm
G 10mm
s1 15.9mm
T 32.9mm
Static load Cr 4.75 kN
Dynamic load Cor 9.56 kN
Fatigue load limit Pu 0.2 kN
Limiting speed 9500 rpm
Weight 0.45 kg
