SKU: FY2.1/4TF-SKF

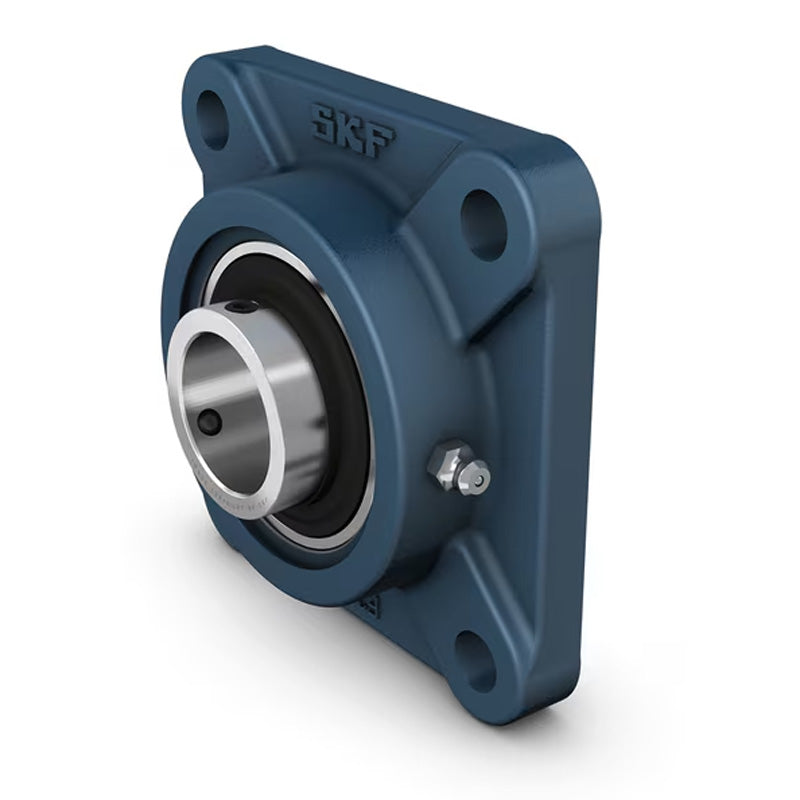

SKF FY2-1/4TF Square Cast Housing with Grub Screw 2-1/4 inch Insert
SKF FY2-1/4TF Square Cast Housing with Grub Screw 2-1/4 inch Insert
Regular price
CHF 197.00
ex VAT
Regular price
Sale price
CHF 197.00
ex VAT
In stock
Price Break
10+
CHF 156.30
20+
CHF 147.52
30+
CHF 145.76
40+
CHF 144.01
50+
CHF 142.25
75+
CHF 140.50
100+
CHF 131.71
200+
CHF 129.96
250+
CHF 128.20
500+
CHF 126.45
1000+
CHF 122.93
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| J | 143mm |
| L | 175mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 73.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 4.75 kg |
| Housing | Insert |
