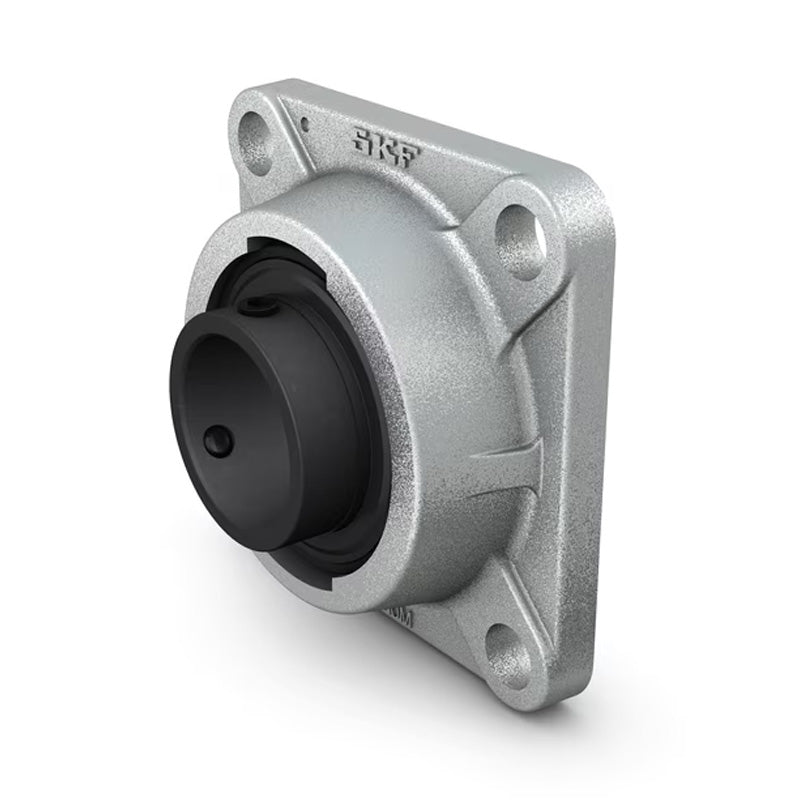

• SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
1 1

SKU: FY20TF/VA201-SKF

SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm

SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
CHF 170.00 ex VAT
CHF 170.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 135.20
19+ CHF 127.60
29+ CHF 126.08
39+ CHF 124.56
49+ CHF 123.05
74+ CHF 121.53
99+ CHF 113.93
199+ CHF 112.41
249+ CHF 110.89
499+ CHF 109.37
999+ CHF 106.34
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Temperature Range:
High Temp
Technical
d 20mm
A1 29.5mm
A2 11mm
B 31mm
J 63.5mm
L 86mm
N 11.1mm
G 10mm
T 37.3mm
Dynamic load C 12.7 kN
Static load Co 6.55 kN
Weight 0.6 kg
