SKU: FY20TR-SKF

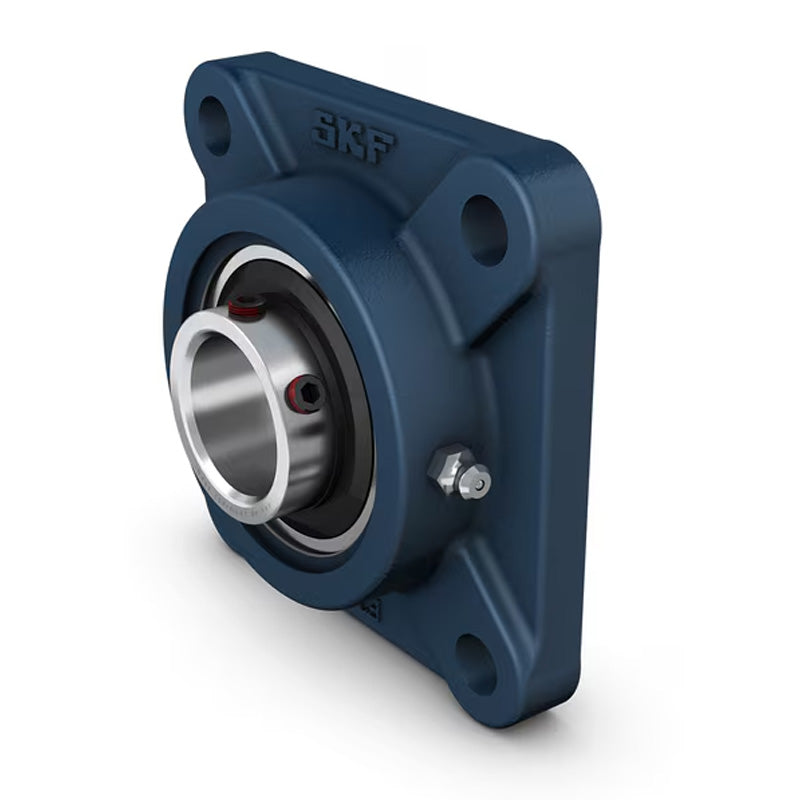

SKF FY20TR Square Cast Housing with Grub Screw 20mm Insert
SKF FY20TR Square Cast Housing with Grub Screw 20mm Insert
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.48
20+
CHF 37.26
30+
CHF 36.82
40+
CHF 36.37
50+
CHF 35.93
75+
CHF 35.49
100+
CHF 33.27
200+
CHF 32.83
250+
CHF 32.38
500+
CHF 31.94
1000+
CHF 31.05
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FY
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B | 31mm |
| Da | 68.3mm |
| J | 63.5mm |
| L | 86mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 37.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 5000 rpm |
| A5 | 18.5mm |
| Weight | 0.6 kg |
| Compatible end cover closed | ECY204 |
