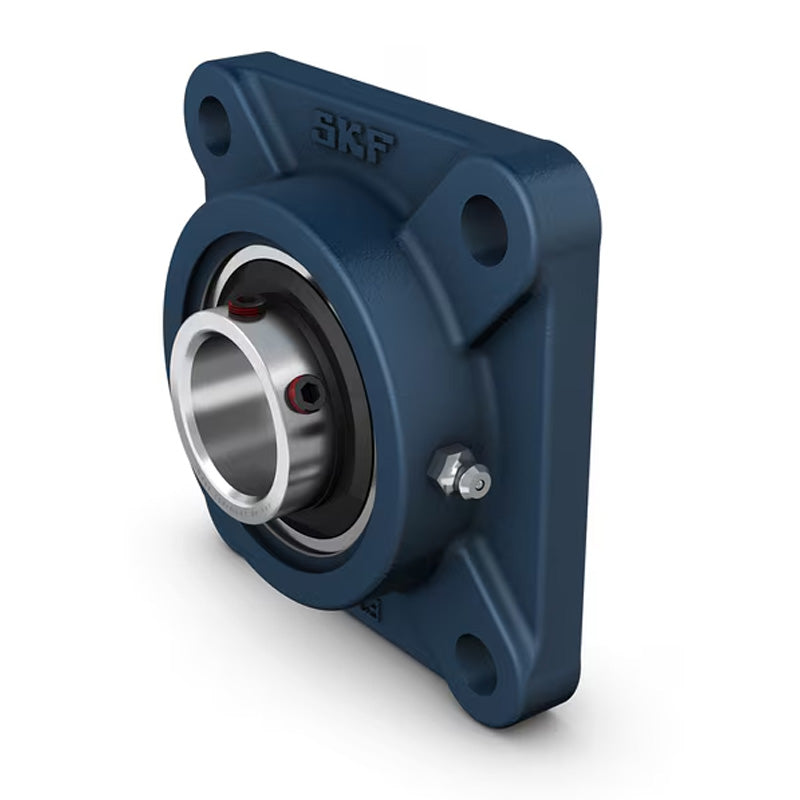

• SKF FY25TR Square Cast Housing with Grub Screw 25mm Insert
1 1

SKU: FY25TR-SKF

SKF FY25TR Square Cast Housing with Grub Screw 25mm Insert

SKF FY25TR Square Cast Housing with Grub Screw 25mm Insert
CHF 59.00 ex VAT
CHF 59.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 46.81
20+ CHF 44.18
30+ CHF 43.65
40+ CHF 43.13
50+ CHF 42.60
75+ CHF 42.08
100+ CHF 39.45
200+ CHF 38.92
250+ CHF 38.39
500+ CHF 37.87
1000+ CHF 36.82
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Style:
FY
Bolt Hole Centres:
70mm
Technical
d 25mm
A1 30mm
A2 12mm
B 34.1mm
Da 74.6mm
J 70mm
L 95mm
N 11.5mm
G 10mm
s1 19.8mm
T 38.8mm
Static load Cr 7.8 kN
Dynamic load Cor 14 kN
Fatigue load limit Pu 0.335 kN
Limiting speed 4300 rpm
A5 18mm
Weight 0.77 kg
Compatible end cover closed ECY205
