SKU: FY45FM-SKF

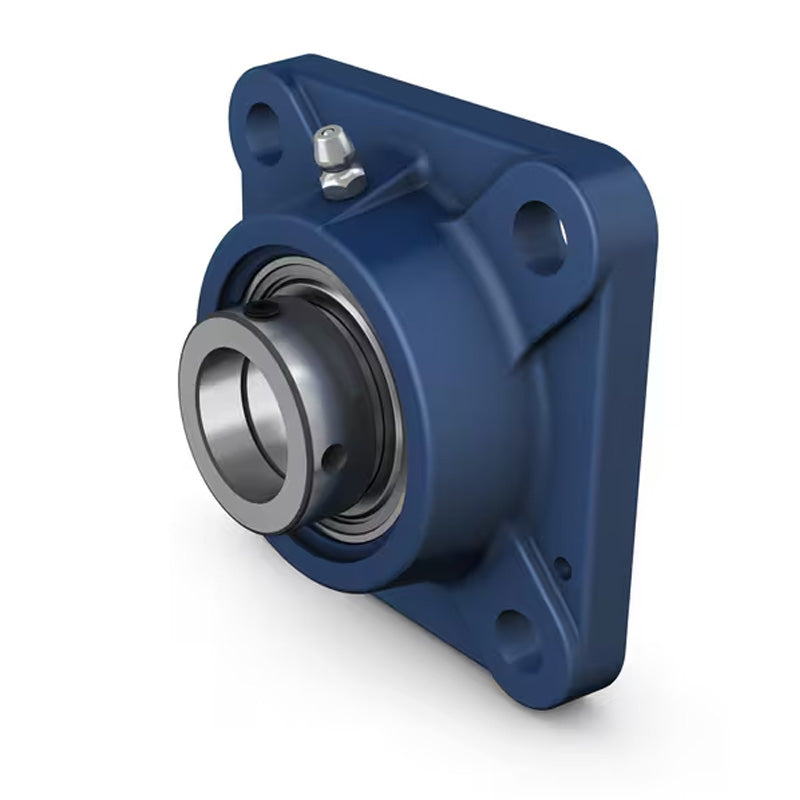

SKF FY45FM Square Cast Housing with Eccentric Locking Collar 45mm Insert
SKF FY45FM Square Cast Housing with Eccentric Locking Collar 45mm Insert
Regular price
CHF 98.00
ex VAT
Regular price
Sale price
CHF 98.00
ex VAT
In stock
Price Break
10+
CHF 77.71
20+
CHF 73.34
30+
CHF 72.47
40+
CHF 71.60
50+
CHF 70.72
75+
CHF 69.85
100+
CHF 65.48
200+
CHF 64.61
250+
CHF 63.74
500+
CHF 62.86
1000+
CHF 61.12
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FY
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B1 | 43.7mm |
| Da | 119.1mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| G | 14mm |
| s1 | 32.7mm |
| T | 56.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 2.15 kg |
| Compatible end cover closed | ECY209 |
