SKU: FY45TF/VA228-SKF

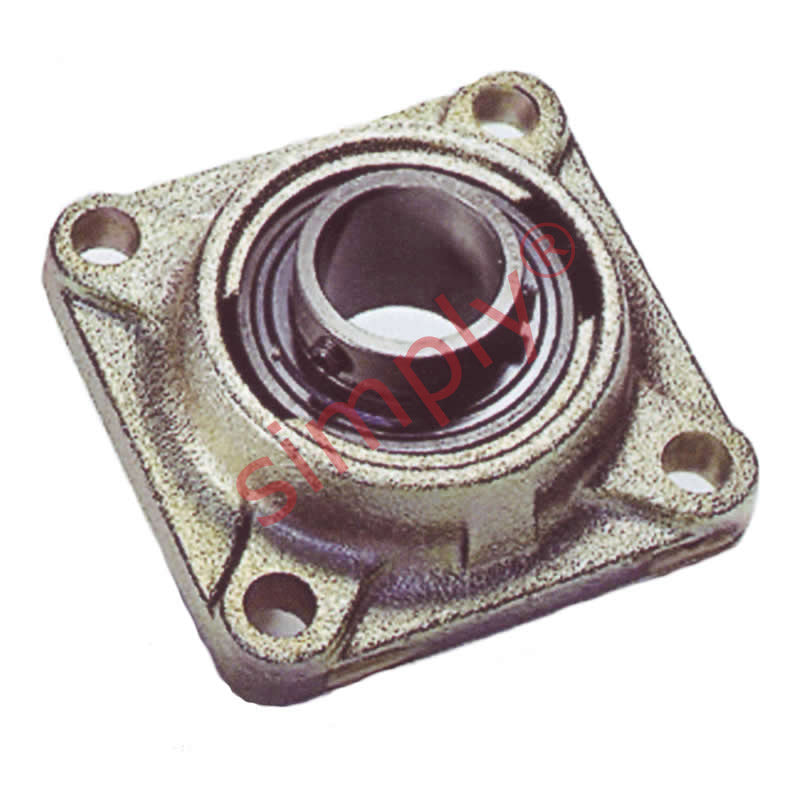

SKF FY45TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 45mm
SKF FY45TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 45mm
Regular price
CHF 331.00
ex VAT
Regular price
Sale price
CHF 331.00
ex VAT
In stock
Price Break
10+
CHF 263.31
19+
CHF 248.52
29+
CHF 245.56
39+
CHF 242.60
49+
CHF 239.64
74+
CHF 236.69
99+
CHF 221.89
199+
CHF 218.93
249+
CHF 215.98
499+
CHF 213.02
999+
CHF 207.10
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 105mm |
| L | 137mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.1 kg |
