SKU: FY45TR-SKF

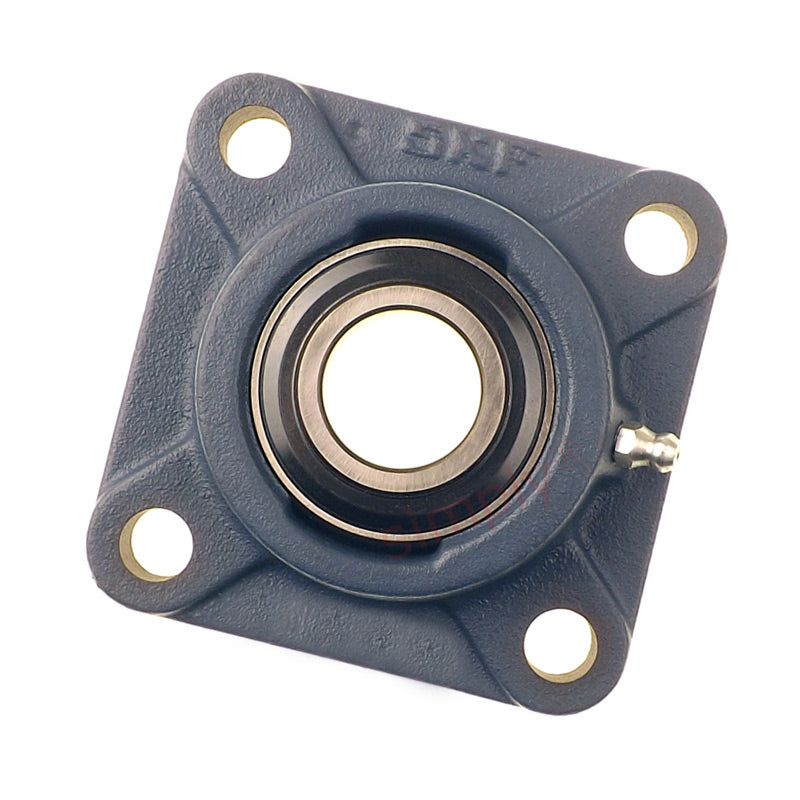

SKF FY45TR Square Cast Housing with Grub Screw 45mm Insert
SKF FY45TR Square Cast Housing with Grub Screw 45mm Insert
Regular price
CHF 109.77
ex VAT
Regular price
Sale price
CHF 109.77
ex VAT
In stock
Price Break
10+
CHF 97.70
19+
CHF 92.21
29+
CHF 91.11
39+
CHF 90.01
49+
CHF 88.91
74+
CHF 87.82
99+
CHF 82.33
199+
CHF 81.23
249+
CHF 80.13
499+
CHF 79.03
999+
CHF 76.84
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FY
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 119.1mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 2400 rpm |
| A5 | 23mm |
| Weight | 2.1 kg |
| Compatible end cover closed | ECY209 |
