SKU: FY5/8TF-SKF

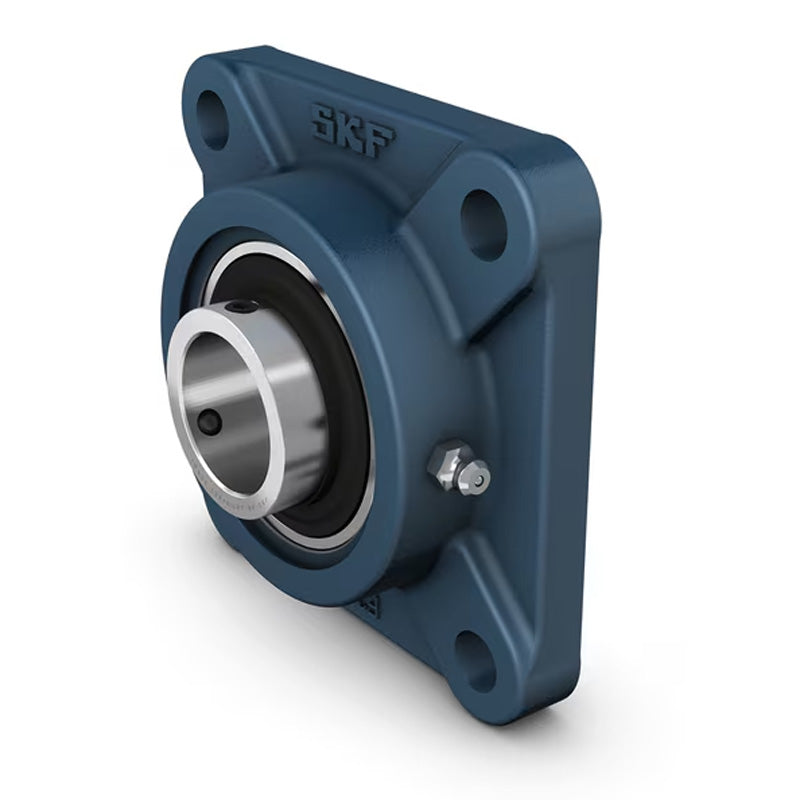

SKF FY5/8TF Square Cast Housing with Grub Screw 5/8 inch Insert
SKF FY5/8TF Square Cast Housing with Grub Screw 5/8 inch Insert
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.68
20+
CHF 37.45
30+
CHF 37.00
40+
CHF 36.56
50+
CHF 36.11
75+
CHF 35.67
100+
CHF 33.44
200+
CHF 32.99
250+
CHF 32.54
500+
CHF 32.10
1000+
CHF 31.21
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- FY
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| A1 | 23.4mm |
| A2 | 9.9mm |
| B | 27.4mm |
| J | 54mm |
| L | 76.2mm |
| G | 10mm |
| s1 | 15.9mm |
| T | 30.6mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.95 kg |
| Housing | Insert |
