SKU: FY50TF/VA201-SKF

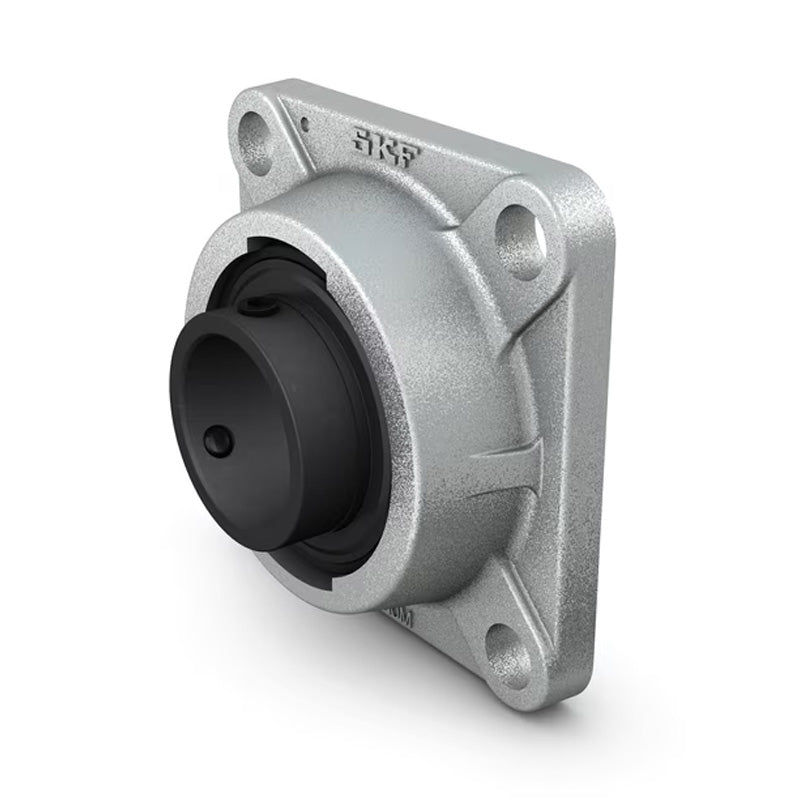

SKF FY50TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
SKF FY50TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
Regular price
CHF 326.82
ex VAT
Regular price
Sale price
CHF 326.82
ex VAT
In stock
Price Break
10+
CHF 290.87
19+
CHF 274.53
29+
CHF 271.26
39+
CHF 267.99
49+
CHF 264.72
74+
CHF 261.46
99+
CHF 245.12
199+
CHF 241.85
249+
CHF 238.58
499+
CHF 235.31
999+
CHF 228.77
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| J | 111mm |
| L | 143mm |
| N | 15.9mm |
| G | 14mm |
| T | 60.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.49 kg |
