SKU: FY50TR-SKF

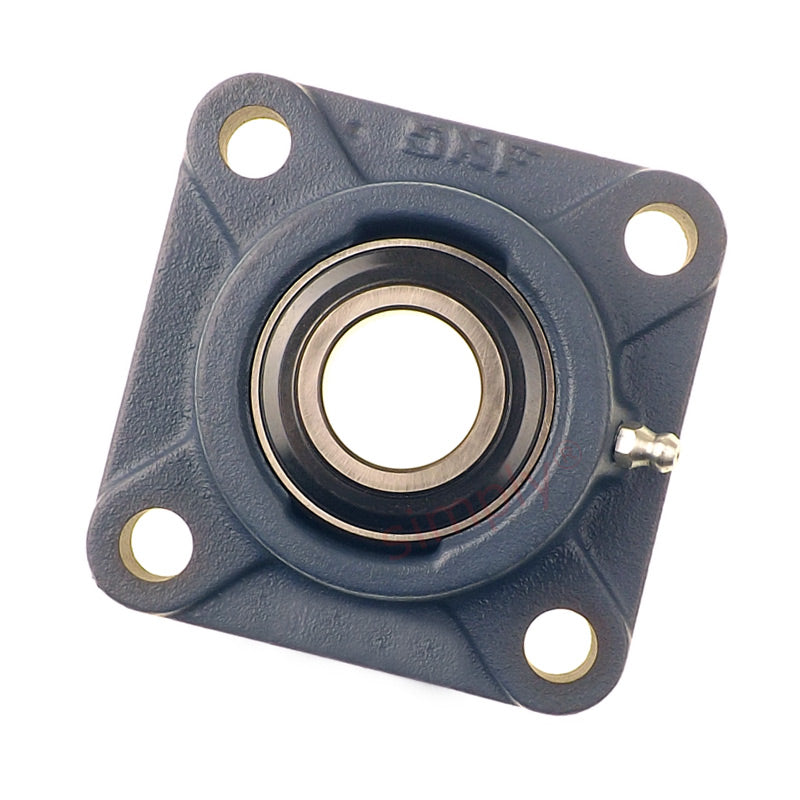

SKF FY50TR Square Cast Housing with Grub Screw 50mm Insert
SKF FY50TR Square Cast Housing with Grub Screw 50mm Insert
Regular price
CHF 128.00
ex VAT
Regular price
Sale price
CHF 128.00
ex VAT
In stock
Price Break
10+
CHF 101.62
20+
CHF 95.91
30+
CHF 94.77
40+
CHF 93.63
50+
CHF 92.48
75+
CHF 91.34
100+
CHF 85.63
200+
CHF 84.49
250+
CHF 83.35
500+
CHF 82.21
1000+
CHF 79.93
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FY
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| Da | 125.4mm |
| J | 111mm |
| L | 143mm |
| N | 18mm |
| G | 16mm |
| s1 | 32.6mm |
| T | 60.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 2200 rpm |
| A5 | 29.5mm |
| Weight | 2.5 kg |
| Compatible end cover closed | ECY210 |
