SKU: FY55TF-SKF

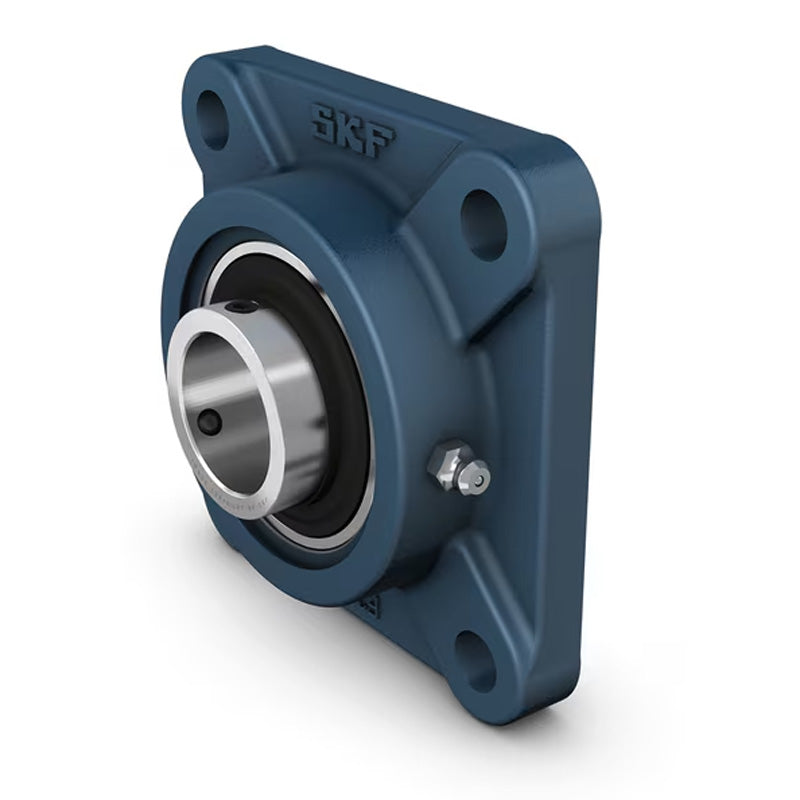

SKF FY55TF Square Cast Housing with Grub Screw 55mm Insert
SKF FY55TF Square Cast Housing with Grub Screw 55mm Insert
Regular price
CHF 135.00
ex VAT
Regular price
Sale price
CHF 135.00
ex VAT
In stock
Price Break
10+
CHF 107.44
20+
CHF 101.40
30+
CHF 100.19
40+
CHF 98.99
50+
CHF 97.78
75+
CHF 96.57
100+
CHF 90.54
200+
CHF 89.33
250+
CHF 88.12
500+
CHF 86.91
1000+
CHF 84.50
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FY
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| Da | 150.8mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 64.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| A5 | 34mm |
| Weight | 3.6 kg |
| Compatible end cover closed | ECY211 |
