SKU: FY55TR-SKF

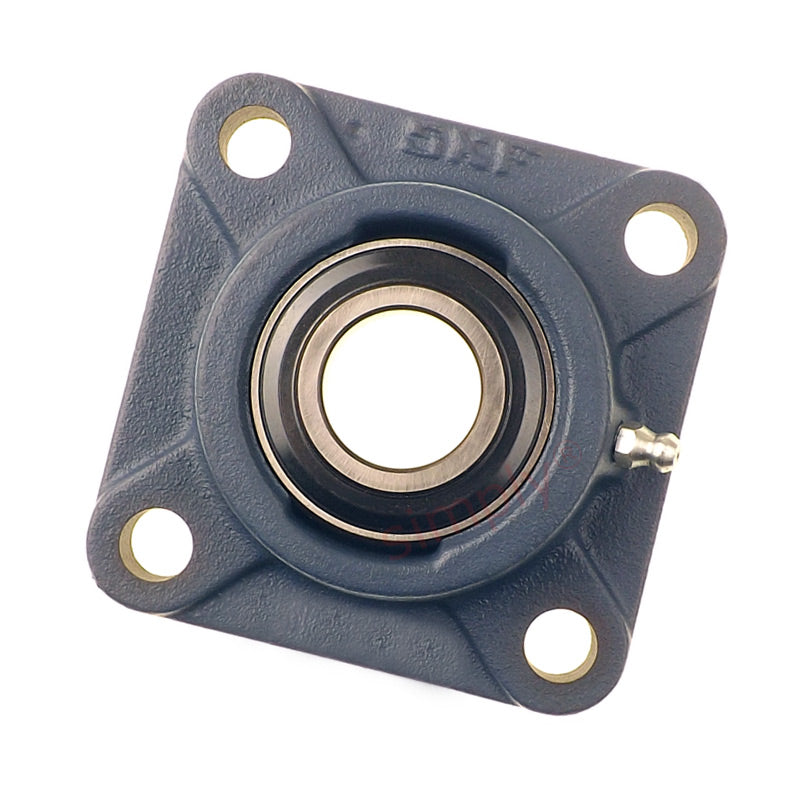

SKF FY55TR Square Cast Housing with Grub Screw 55mm Insert
SKF FY55TR Square Cast Housing with Grub Screw 55mm Insert
Regular price
CHF 167.96
ex VAT
Regular price
Sale price
CHF 167.96
ex VAT
In stock
Price Break
10+
CHF 149.48
19+
CHF 141.09
29+
CHF 139.41
39+
CHF 137.73
49+
CHF 136.05
74+
CHF 134.37
99+
CHF 125.97
199+
CHF 124.29
249+
CHF 122.61
499+
CHF 120.93
999+
CHF 117.57
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FY
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| Da | 150.8mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 64.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 1900 rpm |
| A5 | 34mm |
| Weight | 3.6 kg |
| Compatible end cover closed | ECY211 |
