SKU: FY60TR-SKF

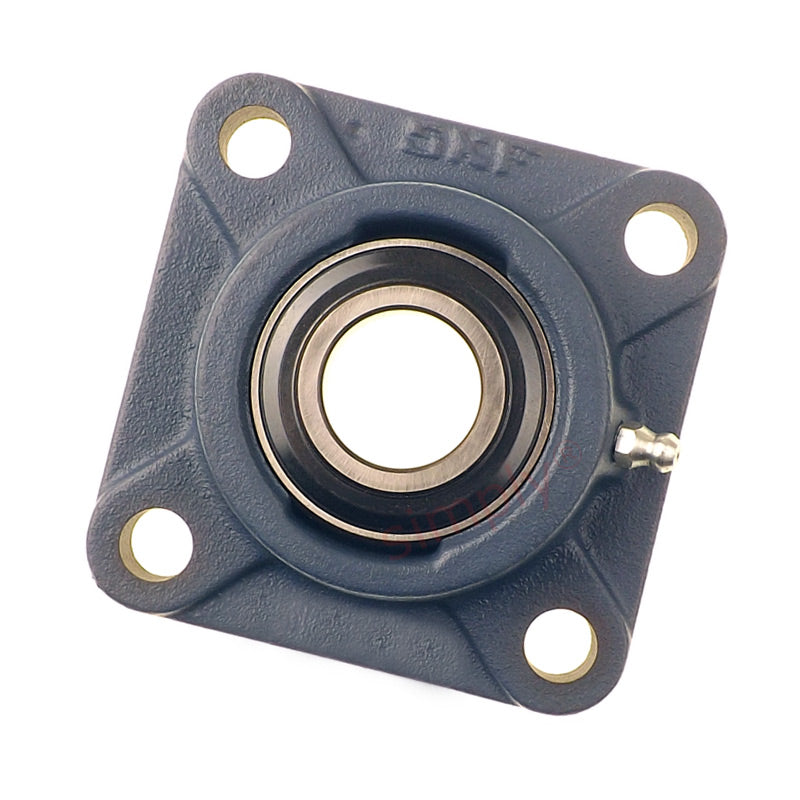

SKF FY60TR Square Cast Housing with Grub Screw 60mm Insert
SKF FY60TR Square Cast Housing with Grub Screw 60mm Insert
Regular price
CHF 212.00
ex VAT
Regular price
Sale price
CHF 212.00
ex VAT
In stock
Price Break
10+
CHF 168.32
20+
CHF 158.86
30+
CHF 156.97
40+
CHF 155.08
50+
CHF 153.19
75+
CHF 151.30
100+
CHF 141.84
200+
CHF 139.95
250+
CHF 138.06
500+
CHF 136.17
1000+
CHF 132.38
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 73.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 1800 rpm |
| A5 | 35.5mm |
| Weight | 4.6 kg |
| Compatible end cover closed | ECY212 |
