• SKF FY7/8FM Square Cast Housing with Eccentric Collar 7/8 inch Insert
1 1

SKU: FY7/8FM-SKF

SKF FY7/8FM Square Cast Housing with Eccentric Collar 7/8 inch Insert

SKF FY7/8FM Square Cast Housing with Eccentric Collar 7/8 inch Insert
CHF 38.00 ex VAT
CHF 38.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 29.49
20+ CHF 27.83
30+ CHF 27.50
40+ CHF 27.17
50+ CHF 26.84
75+ CHF 26.51
100+ CHF 24.85
200+ CHF 24.52
250+ CHF 24.19
500+ CHF 23.86
1000+ CHF 23.20
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
FY
Bolt Hole Centres:
70mm

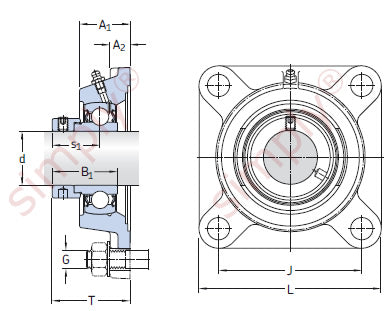

Technical
d 7/8 inch
A1 30mm
A2 12mm
B1 31mm
J 70mm
L 95mm
G 30mm
s1 23.5mm
T 42.5mm
Static load Cr 7.8 kN
Dynamic load Cor 14 kN
Fatigue load limit 0.335 kN
Limiting speed 7000 rpm
Weight 0.81 kg
Housing Insert
