• SKF FYC20TF Round Cast Housing with Grub Screw 20mm Insert
1 1

SKU: FYC20TF-SKF

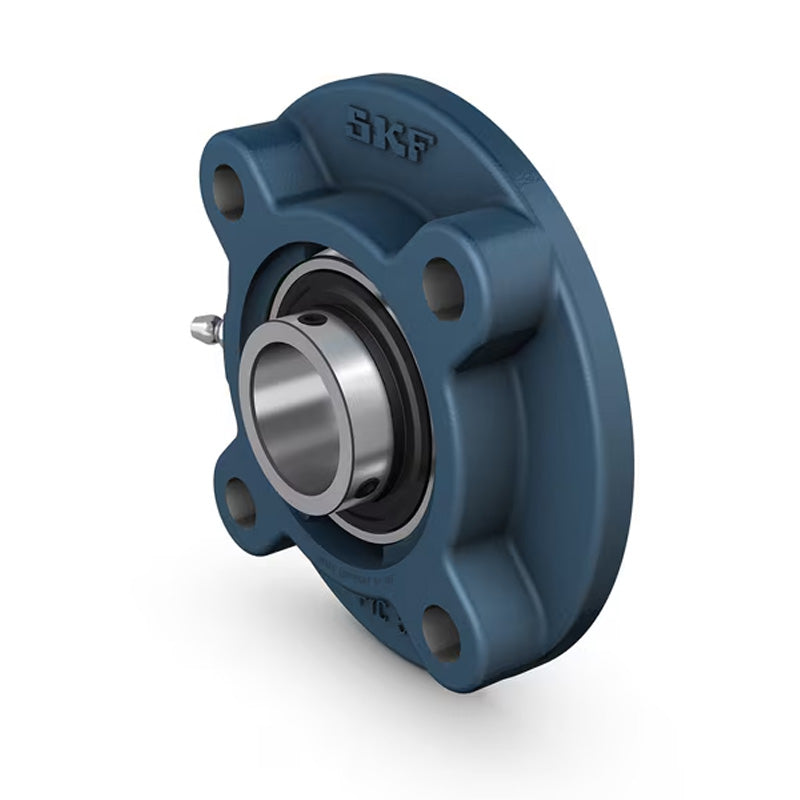

SKF FYC20TF Round Cast Housing with Grub Screw 20mm Insert

SKF FYC20TF Round Cast Housing with Grub Screw 20mm Insert
CHF 51.00 ex VAT
CHF 51.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 40.49
20+ CHF 38.21
30+ CHF 37.76
40+ CHF 37.30
50+ CHF 36.85
75+ CHF 36.39
100+ CHF 34.12
200+ CHF 33.66
250+ CHF 33.21
500+ CHF 32.75
1000+ CHF 31.84
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Style:
FYC
Pitch Circle Diameter:
78mm
Technical
d 20mm
A1 25.5mm
A2 7mm
A3 5mm
B 31mm
Da h8 62mm
J 78mm
J1 55.2mm
L 100mm
N 12mm
G 10mm
s1 18.3mm
T 28.3mm
Static load Cr 6.55 kN
Dynamic load Cor 12.7 kN
Fatigue load limit Pu 0.28 kN
Limiting speed 8500 rpm
Weight 0.7 kg
