SKU: FYC25TF-SKF

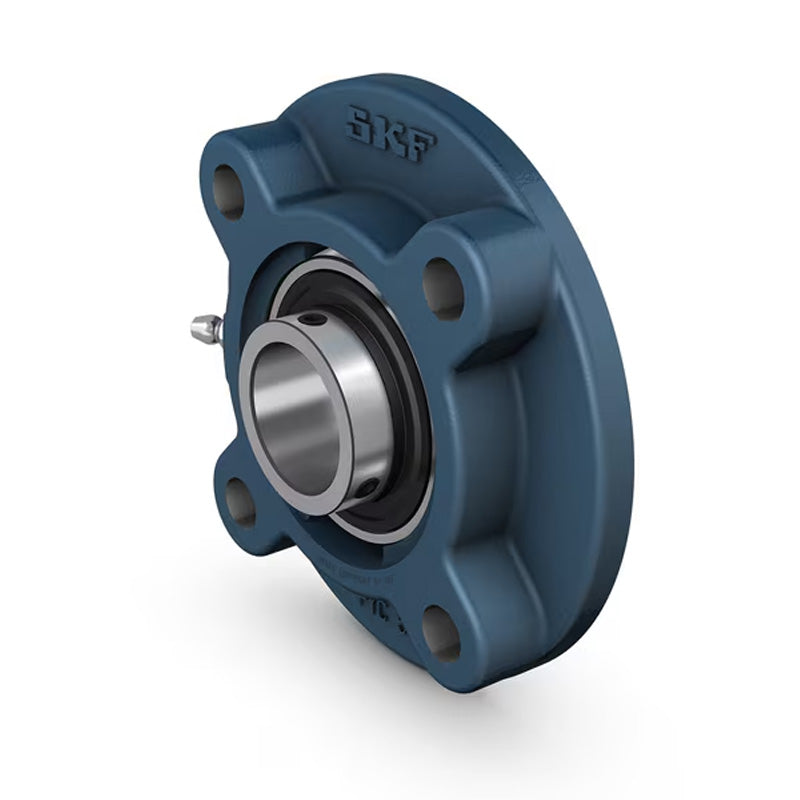

SKF FYC25TF Round Cast Housing with Grub Screw 25mm Insert
SKF FYC25TF Round Cast Housing with Grub Screw 25mm Insert
Regular price
CHF 61.56
ex VAT
Regular price
Sale price
CHF 61.56
ex VAT
In stock
Price Break
10+
CHF 54.79
19+
CHF 51.71
29+
CHF 51.09
39+
CHF 50.48
49+
CHF 49.86
74+
CHF 49.25
99+
CHF 46.17
199+
CHF 45.55
249+
CHF 44.94
499+
CHF 44.32
999+
CHF 43.09
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 27mm |
| A2 | 7mm |
| A3 | 6mm |
| B | 34.1mm |
| Da h8 | 70mm |
| J | 90mm |
| J1 | 63.6mm |
| L | 115mm |
| N | 12mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 29.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.93 kg |
