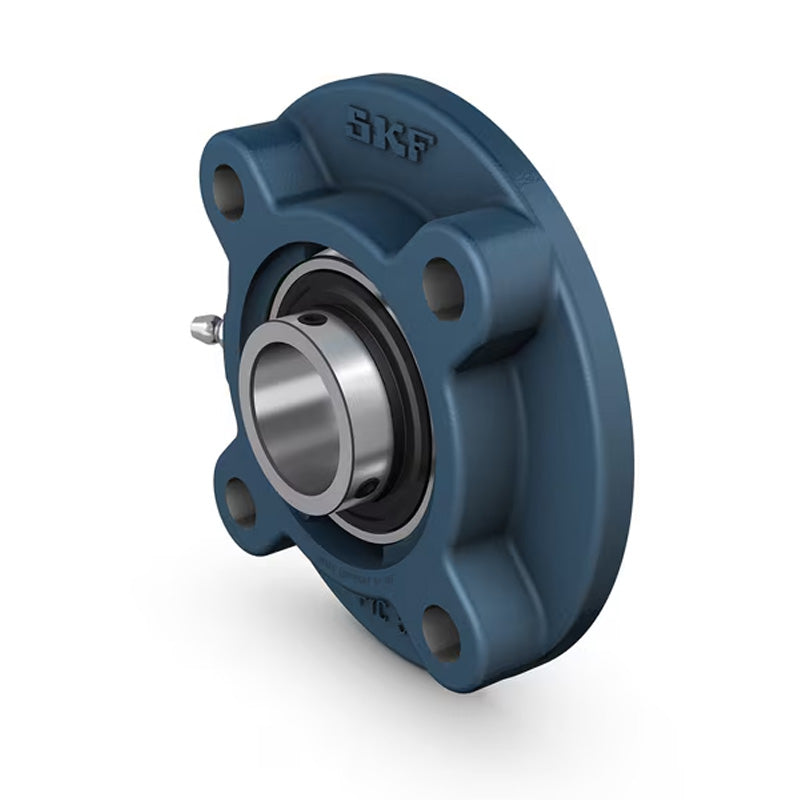

• SKF FYC30TF Round Cast Housing with Grub Screw 30mm Insert
1 1

SKU: FYC30TF-SKF

SKF FYC30TF Round Cast Housing with Grub Screw 30mm Insert

SKF FYC30TF Round Cast Housing with Grub Screw 30mm Insert
CHF 71.00 ex VAT
CHF 71.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 56.18
20+ CHF 53.03
30+ CHF 52.39
40+ CHF 51.76
50+ CHF 51.13
75+ CHF 50.50
100+ CHF 47.34
200+ CHF 46.71
250+ CHF 46.08
500+ CHF 45.45
1000+ CHF 44.19
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Style:
FYC
Pitch Circle Diameter:
100mm
Technical
d 30mm
A1 31mm
A2 8mm
A3 8mm
B 38.1mm
Da h8 80mm
J 100mm
J1 70.7mm
L 125mm
N 12mm
G 10mm
s1 22.2mm
T 32.2mm
Static load Cr 11.2 kN
Dynamic load Cor 19.5 kN
Fatigue load limit Pu 0.475 kN
Limiting speed 6300 rpm
Weight 1.35 kg
