SKU: FYC40TF-SKF

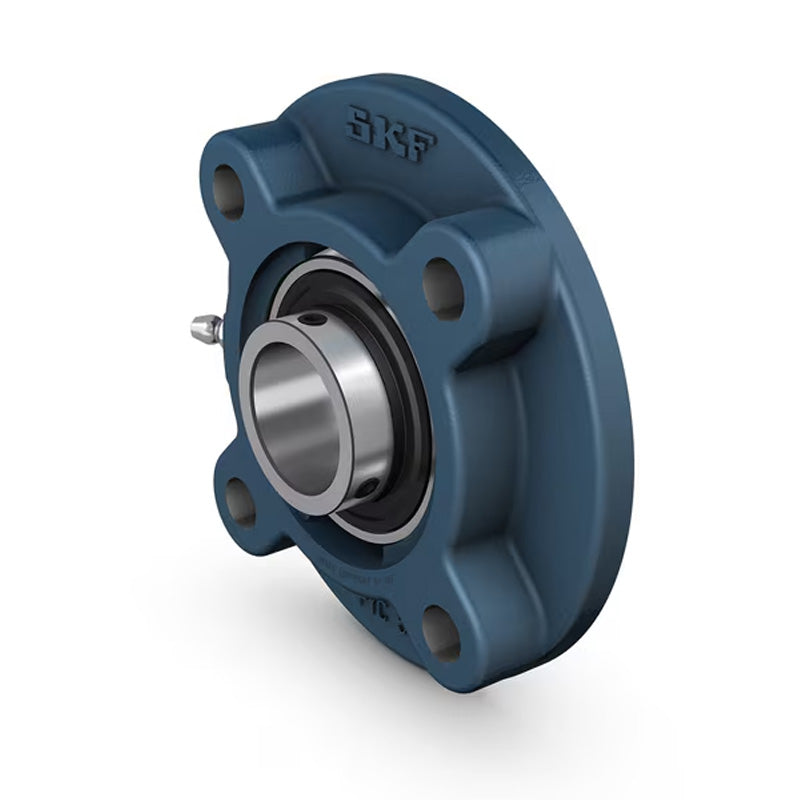

SKF FYC40TF Round Cast Housing with Grub Screw 40mm Insert
SKF FYC40TF Round Cast Housing with Grub Screw 40mm Insert
Regular price
CHF 82.40
ex VAT
Regular price
Sale price
CHF 82.40
ex VAT
In stock
Price Break
10+
CHF 73.34
19+
CHF 69.22
29+
CHF 68.39
39+
CHF 67.57
49+
CHF 66.74
74+
CHF 65.92
99+
CHF 61.80
199+
CHF 60.98
249+
CHF 60.15
499+
CHF 59.33
999+
CHF 57.68
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 36mm |
| A2 | 9mm |
| A3 | 10mm |
| B | 49.2mm |
| Da h8 | 100mm |
| J | 120mm |
| J1 | 84.9mm |
| L | 145mm |
| N | 14mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 41.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2 kg |
