SKU: FYC45TF-SKF

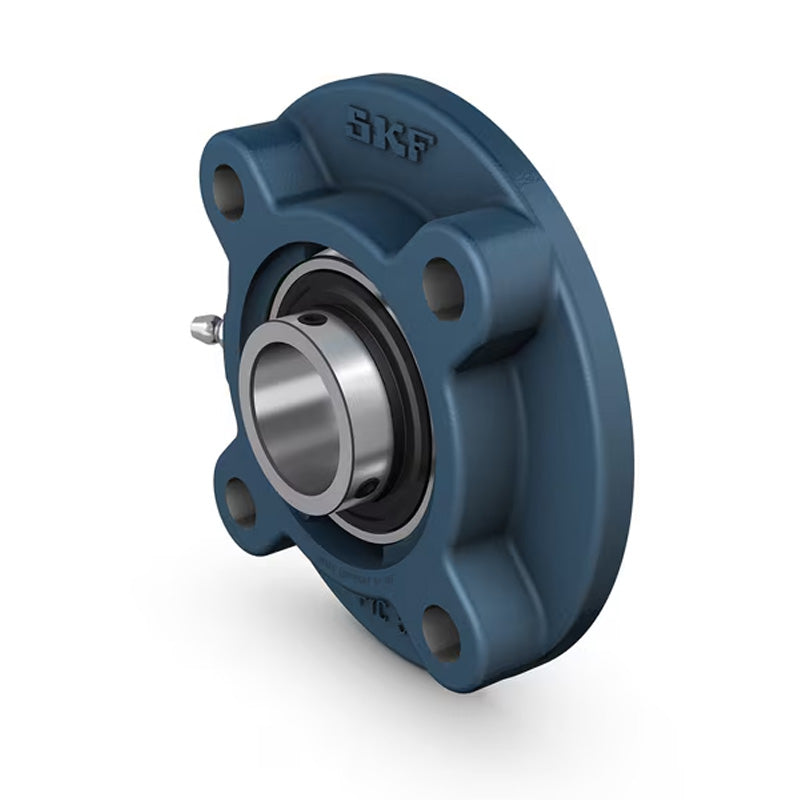

SKF FYC45TF Round Cast Housing with Grub Screw 45mm Insert
SKF FYC45TF Round Cast Housing with Grub Screw 45mm Insert
Regular price
CHF 115.57
ex VAT
Regular price
Sale price
CHF 115.57
ex VAT
In stock
Price Break
10+
CHF 102.86
19+
CHF 97.08
29+
CHF 95.92
39+
CHF 94.77
49+
CHF 93.61
74+
CHF 92.46
99+
CHF 86.68
199+
CHF 85.52
249+
CHF 84.37
499+
CHF 83.21
999+
CHF 80.90
Couldn't load pickup availability
Share this product
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 38mm |
| A2 | 14mm |
| A3 | 12mm |
| B | 49.2mm |
| Da h8 | 105mm |
| J | 132mm |
| J1 | 93.3mm |
| L | 160mm |
| N | 18mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 40.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.65 kg |
