SKU: FYC50TF-SKF

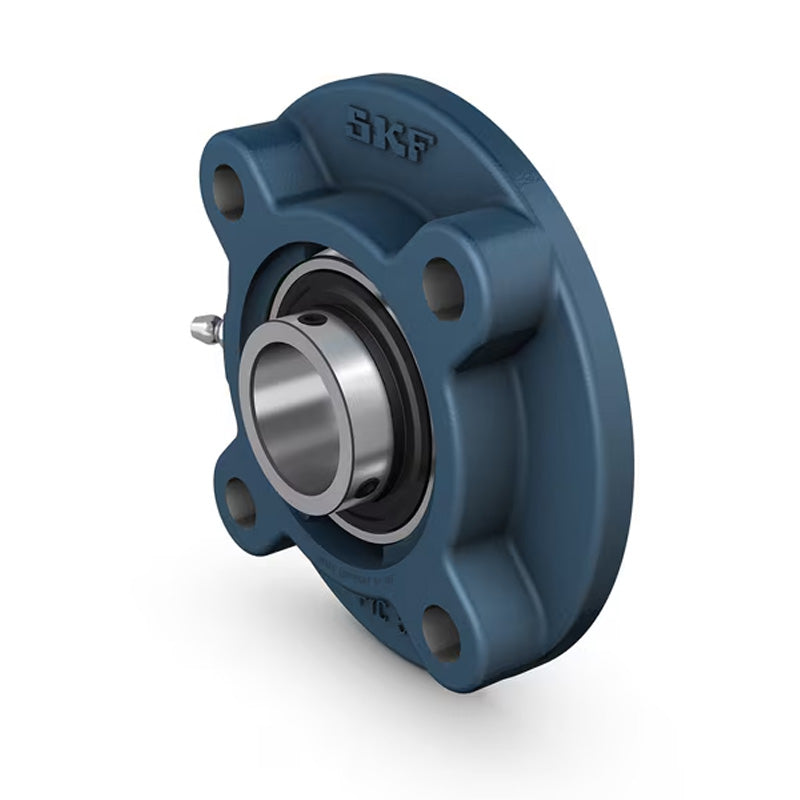

SKF FYC50TF Round Cast Housing with Grub Screw 50mm Insert
SKF FYC50TF Round Cast Housing with Grub Screw 50mm Insert
Regular price
CHF 103.74
ex VAT
Regular price
Sale price
CHF 103.74
ex VAT
In stock
Price Break
10+
CHF 92.33
19+
CHF 87.14
29+
CHF 86.10
39+
CHF 85.07
49+
CHF 84.03
74+
CHF 82.99
99+
CHF 77.81
199+
CHF 76.77
249+
CHF 75.73
499+
CHF 74.69
999+
CHF 72.62
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FYC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 40mm |
| A2 | 14mm |
| A3 | 12mm |
| B | 51.6mm |
| Da h8 | 110mm |
| J | 138mm |
| J1 | 97.6mm |
| L | 165mm |
| N | 16mm |
| G | 14mm |
| s1 | 32.6mm |
| T | 42.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.8 kg |
