SKU: FYC55TF-SKF

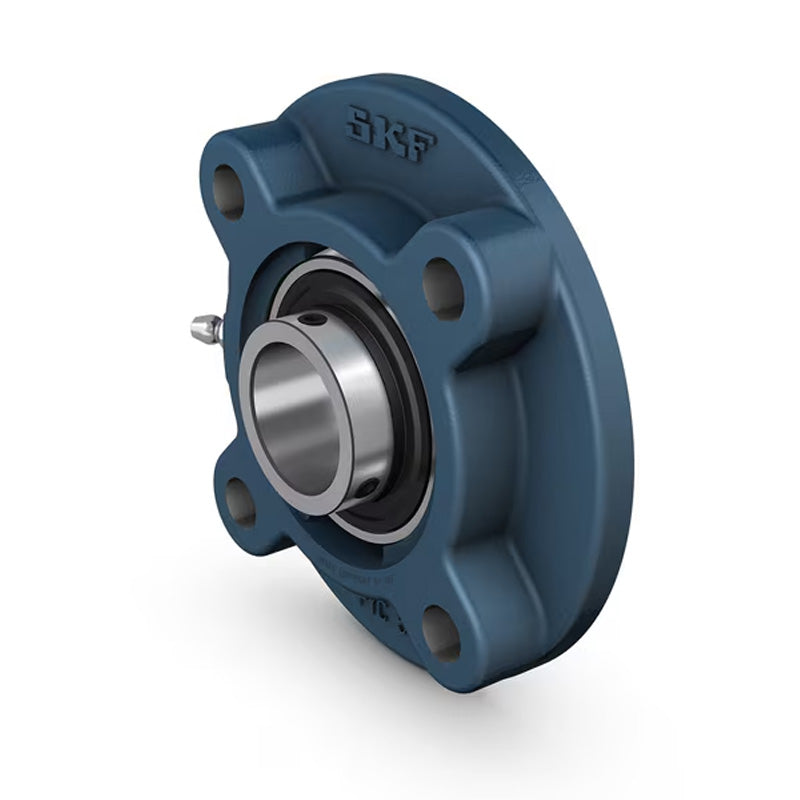

SKF FYC55TF Round Cast Housing with Grub Screw 55mm Insert
SKF FYC55TF Round Cast Housing with Grub Screw 55mm Insert
Regular price
CHF 155.57
ex VAT
Regular price
Sale price
CHF 155.57
ex VAT
In stock
Price Break
10+
CHF 138.46
19+
CHF 130.68
29+
CHF 129.12
39+
CHF 127.57
49+
CHF 126.01
74+
CHF 124.46
99+
CHF 116.68
199+
CHF 115.12
249+
CHF 113.57
499+
CHF 112.01
999+
CHF 108.90
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FYC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| A3 | 12mm |
| B | 55.6mm |
| Da h8 | 125mm |
| J | 150mm |
| J1 | 106.1mm |
| L | 185mm |
| N | 19mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 46.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 4.3 kg |
