SKU: FYC60TF-SKF

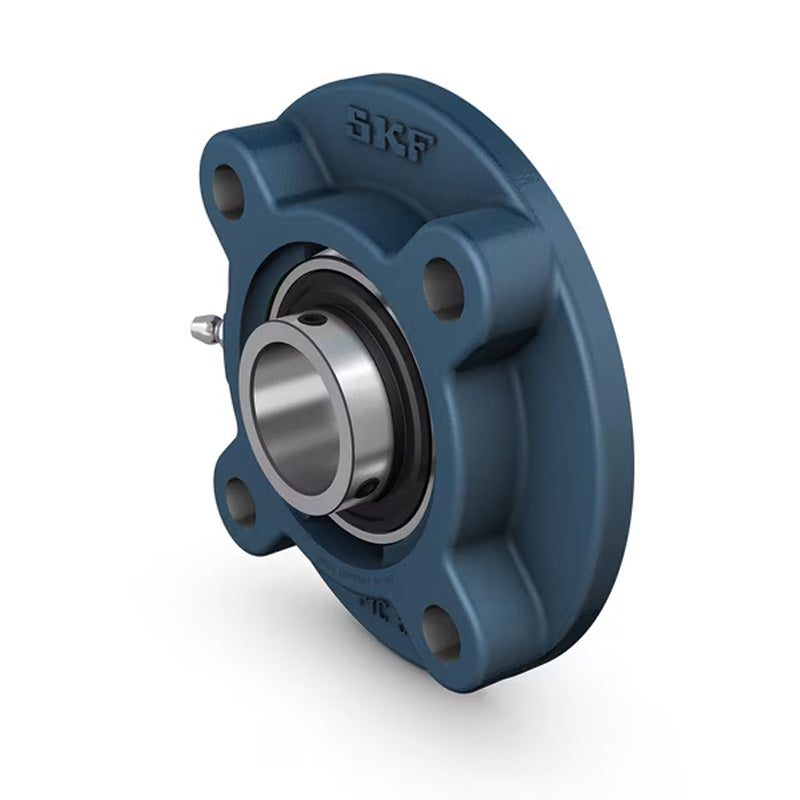

SKF FYC60TF Round Cast Housing with Grub Screw 60mm Insert
SKF FYC60TF Round Cast Housing with Grub Screw 60mm Insert
Regular price
CHF 186.82
ex VAT
Regular price
Sale price
CHF 186.82
ex VAT
In stock
Price Break
10+
CHF 166.27
19+
CHF 156.93
29+
CHF 155.06
39+
CHF 153.19
49+
CHF 151.32
74+
CHF 149.46
99+
CHF 140.12
199+
CHF 138.25
249+
CHF 136.38
499+
CHF 134.51
999+
CHF 130.77
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 48mm |
| A2 | 15mm |
| A3 | 12mm |
| B | 65.1mm |
| Da h8 | 135mm |
| J | 160mm |
| J1 | 113.1mm |
| L | 195mm |
| N | 19mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 56.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 4.9 kg |
