SKU: FYC65TF-SKF

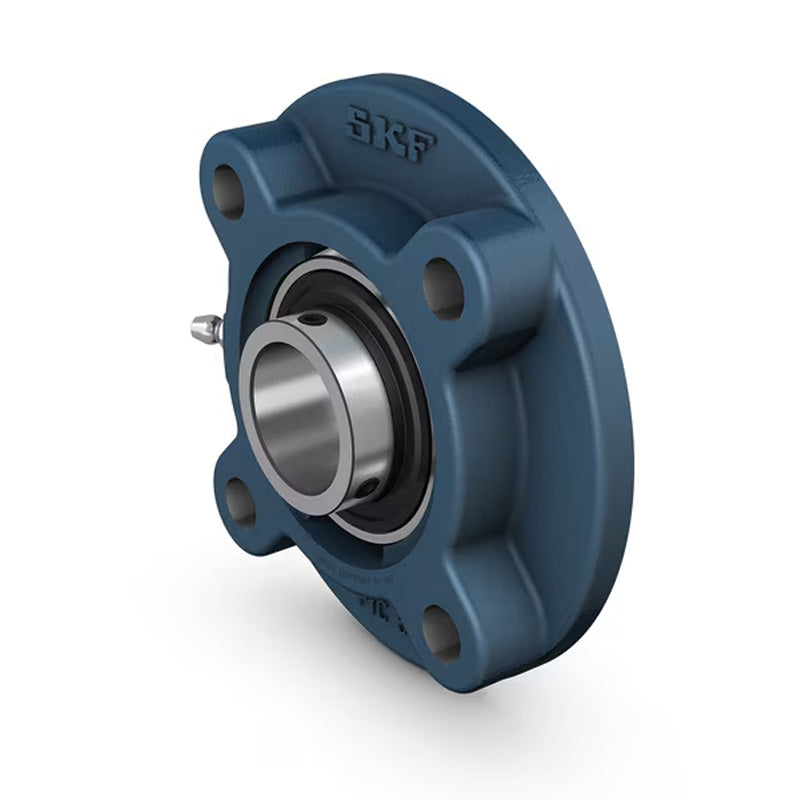

SKF FYC65TF Round Cast Housing with Grub Screw 65mm Insert
SKF FYC65TF Round Cast Housing with Grub Screw 65mm Insert
Regular price
CHF 216.91
ex VAT
Regular price
Sale price
CHF 216.91
ex VAT
In stock
Price Break
10+
CHF 193.05
19+
CHF 182.20
29+
CHF 180.04
39+
CHF 177.87
49+
CHF 175.70
74+
CHF 173.53
99+
CHF 162.68
199+
CHF 160.51
249+
CHF 158.34
499+
CHF 156.18
999+
CHF 151.84
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Style:
- FYC
- Pitch Circle Diameter:
- 170mm

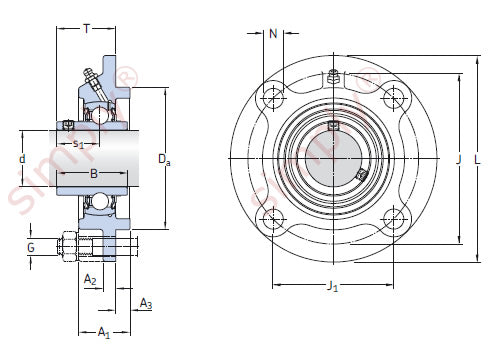

Technical
Technical
| d | 65mm |
|---|---|
| A1 | 50mm |
| A2 | 15mm |
| A3 | 14mm |
| B | 68.3mm |
| Da h8 | 145mm |
| J | 170mm |
| J1 | 120.2mm |
| L | 205mm |
| N | 19mm |
| G | 16mm |
| s1 | 42.9mm |
| T | 58.9mm |
| Static load Cr | 40.5 kN |
| Dynamic load Cor | 55.9 kN |
| Fatigue load limit Pu | 1.73 kN |
| Limiting speed | 3000 rpm |
| Weight | 5.7 kg |
