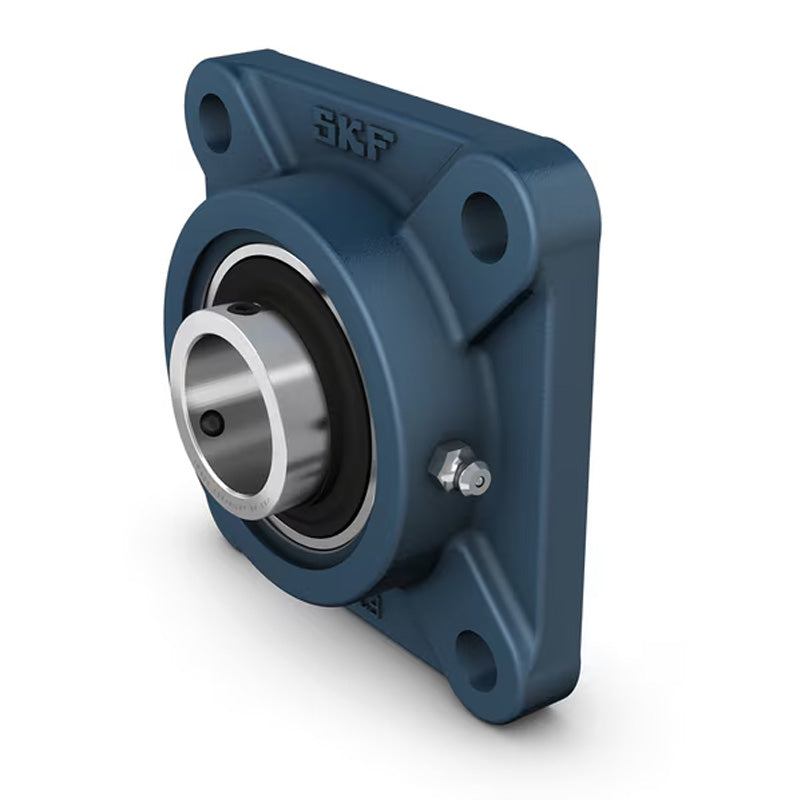

SKF FYJ100TF Square Cast Housing with Grub Screw 100mm Insert
SKF FYJ100TF Square Cast Housing with Grub Screw 100mm Insert
Regular price
CHF 505.53
ex VAT
Regular price
Sale price
CHF 505.53
ex VAT
In stock
Price Break
10+
CHF 449.92
19+
CHF 424.65
29+
CHF 419.59
39+
CHF 414.53
49+
CHF 409.48
74+
CHF 404.42
99+
CHF 379.15
199+
CHF 374.09
249+
CHF 369.04
499+
CHF 363.98
999+
CHF 353.87
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Style:
- FYJ
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 100mm |
|---|---|
| A1 | 70mm |
| A2 | 25mm |
| B | 98.4mm |
| Da | 215.9mm |
| J | 210mm |
| L | 265mm |
| N | 27mm |
| G | 24mm |
| s1 | 63.4mm |
| T | 107.5mm |
| Static load Cr | 93 kN |
| Dynamic load Cor | 124 kN |
| Fatigue load limit Pu | 3.35 kN |
| Limiting speed | 1900 rpm |
| Weight | 15.2 kg |
