SKU: FYJ30KF-SKF

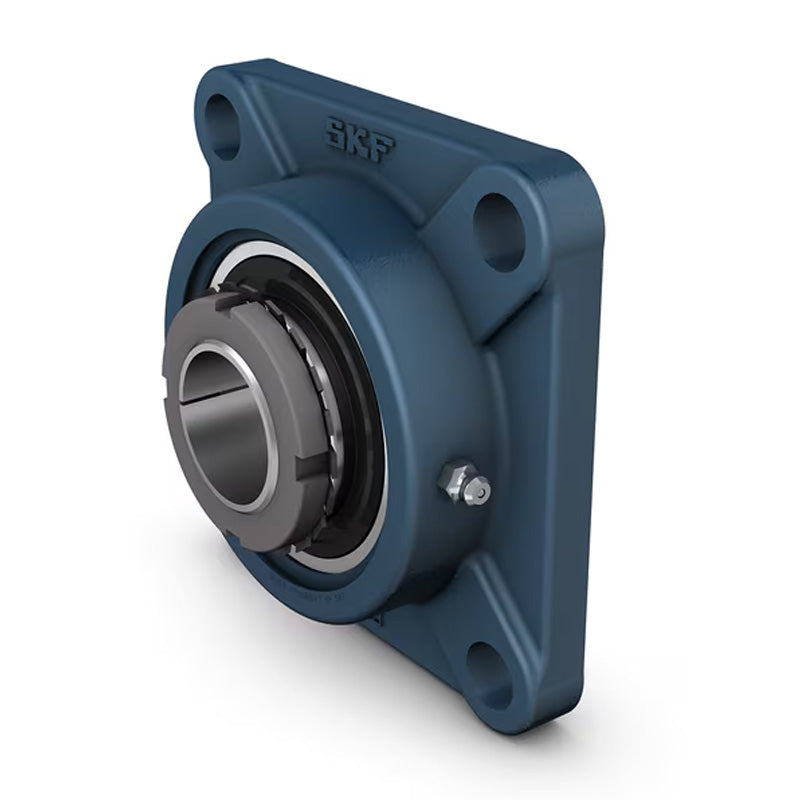

SKF FYJ30KF Flanged Unit with a Square Cast Housing with 25mm Insert
SKF FYJ30KF Flanged Unit with a Square Cast Housing with 25mm Insert
Regular price
CHF 66.25
ex VAT
Regular price
Sale price
CHF 66.25
ex VAT
In stock
Price Break
10+
CHF 58.96
19+
CHF 55.65
29+
CHF 54.99
39+
CHF 54.33
49+
CHF 53.66
74+
CHF 53.00
99+
CHF 49.69
199+
CHF 49.03
249+
CHF 48.36
499+
CHF 47.70
999+
CHF 46.38
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYJ
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 31mm |
| A2 | 13mm |
| B1 | 38mm |
| Da | 93.7mm |
| J | 83mm |
| L | 108mm |
| N | 12mm |
| G | 10mm |
| s1 | 22mm |
| T | 40mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.05 kg |
