• SKF FYJ50TF Square Cast Housing with Grub Screw 50mm Insert
1 1

SKU: FYJ50TF-SKF

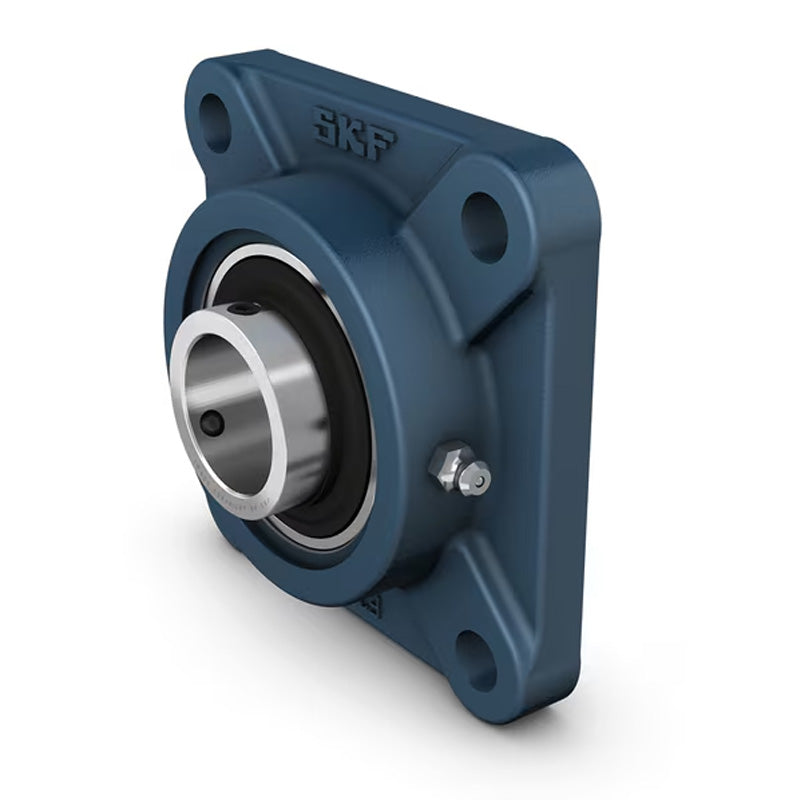

SKF FYJ50TF Square Cast Housing with Grub Screw 50mm Insert

SKF FYJ50TF Square Cast Housing with Grub Screw 50mm Insert
CHF 103.00 ex VAT
CHF 103.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 81.87
20+ CHF 77.27
30+ CHF 76.35
40+ CHF 75.43
50+ CHF 74.51
75+ CHF 73.59
100+ CHF 68.99
200+ CHF 68.07
250+ CHF 67.15
500+ CHF 66.23
1000+ CHF 64.39
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Style:
FYJ
Bolt Hole Centres:
111mm
Technical
d 50mm
A1 40mm
A2 15mm
B 51.6mm
Da 125.4mm
J 111mm
L 143mm
N 16mm
G 14mm
s1 32.6mm
T 54.6mm
Static load Cr 23.2 kN
Dynamic load Cor 35.1 kN
Fatigue load limit Pu 0.98 kN
Limiting speed 4000 rpm
Weight 3.15 kg
