SKU: FYJ65KF-SKF

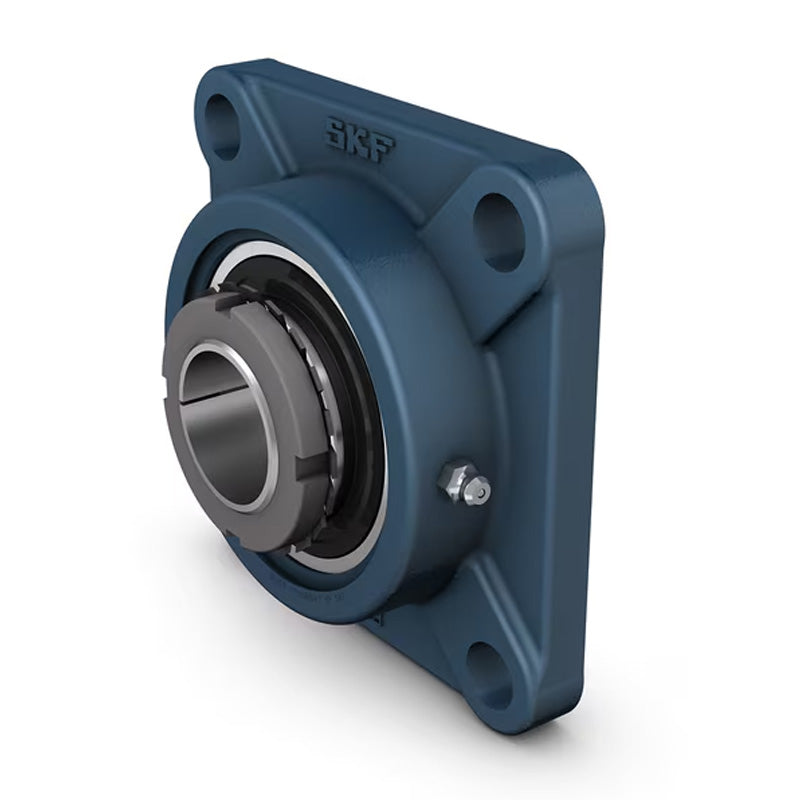

SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
Regular price
CHF 217.30
ex VAT
Regular price
Sale price
CHF 217.30
ex VAT
In stock
Price Break
10+
CHF 193.40
19+
CHF 182.53
29+
CHF 180.36
39+
CHF 178.19
49+
CHF 176.01
74+
CHF 173.84
99+
CHF 162.98
199+
CHF 160.80
249+
CHF 158.63
499+
CHF 156.46
999+
CHF 152.11
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYJ
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 50mm |
| A2 | 22mm |
| B1 | 65mm |
| Da | 161.9mm |
| J | 149mm |
| L | 187mm |
| N | 19mm |
| G | 16mm |
| s1 | 35.8mm |
| T | 65.8mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit Pu | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 6 kg |
