SKU: FYK20TF-SKF

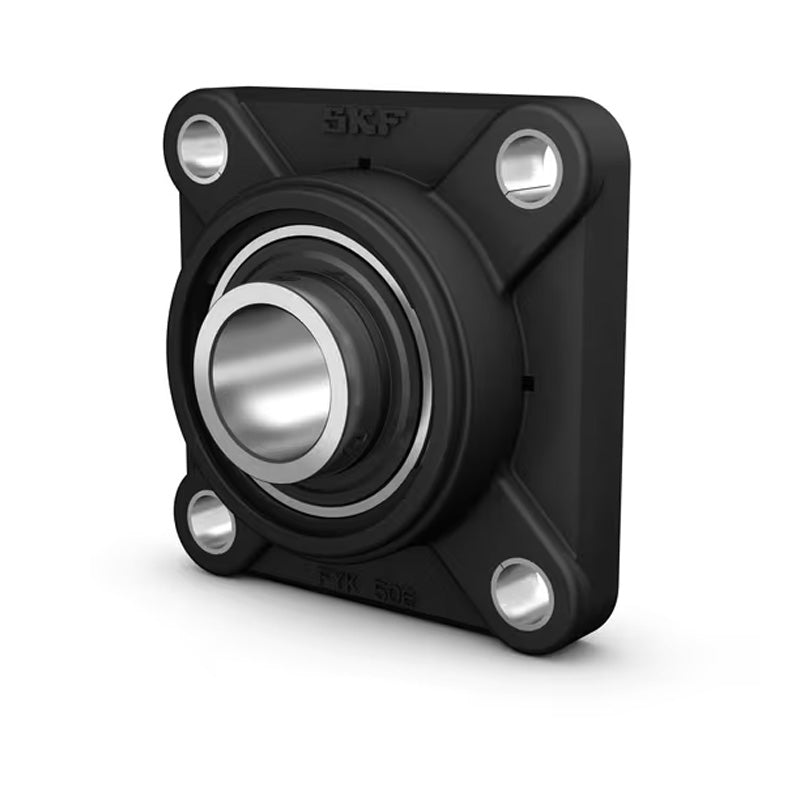

SKF FYK20TF Composite Flanged Unit with a Square Housing with Grub Screw 20mm Insert
SKF FYK20TF Composite Flanged Unit with a Square Housing with Grub Screw 20mm Insert
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
In stock
Price Break
10+
CHF 32.56
20+
CHF 30.73
30+
CHF 30.36
40+
CHF 30.00
50+
CHF 29.63
75+
CHF 29.27
100+
CHF 27.44
200+
CHF 27.07
250+
CHF 26.71
500+
CHF 26.34
1000+
CHF 25.61
Description
Description
| SKF Square Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has a square flange and four bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYK
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 30mm |
| A2 | 15mm |
| B | 31mm |
| Da | 68.3mm |
| J | 63.5mm |
| L | 86mm |
| N | 12mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 37.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.26 kg |
| Compatible end cover closed | ECY204 |
