SKU: FYK30TR-SKF

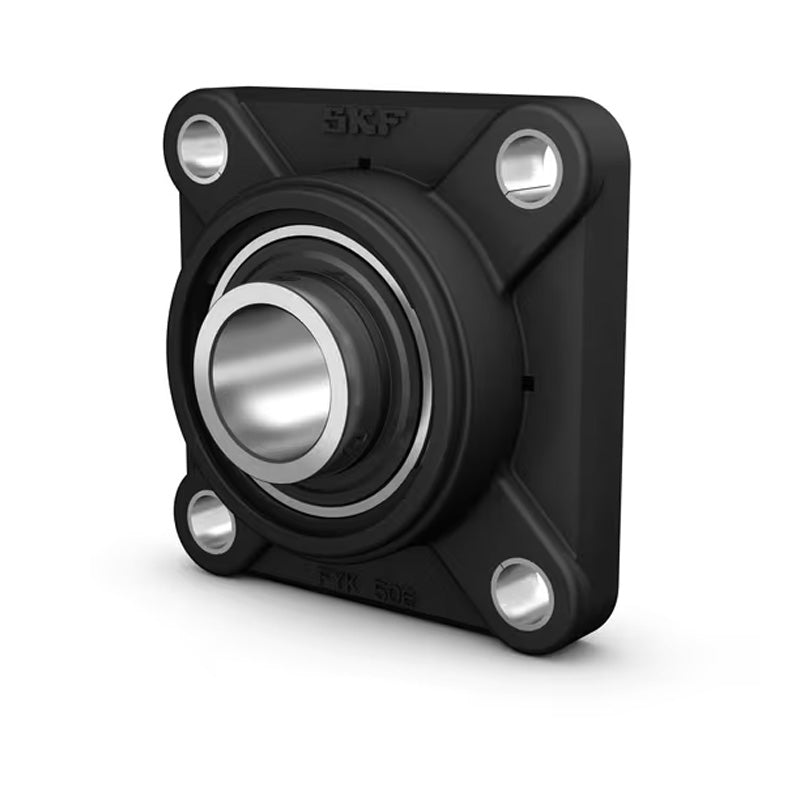

SKF FYK30TR Composite Flanged Unit with a Square Housing with Grub Screw 30mm Insert
SKF FYK30TR Composite Flanged Unit with a Square Housing with Grub Screw 30mm Insert
Regular price
CHF 64.00
ex VAT
Regular price
Sale price
CHF 64.00
ex VAT
In stock
Price Break
10+
CHF 50.30
20+
CHF 47.48
30+
CHF 46.91
40+
CHF 46.35
50+
CHF 45.78
75+
CHF 45.22
100+
CHF 42.39
200+
CHF 41.83
250+
CHF 41.26
500+
CHF 40.70
1000+
CHF 39.56
Description
Description
| SKF Square Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has a square flange and four bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYK
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 33mm |
| A2 | 15.3mm |
| B | 38.1mm |
| Da | 93.7mm |
| J | 82.5mm |
| L | 108mm |
| N | 12mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 20mm |
| Weight | 0.48 kg |
| Compatible end cover closed | ECY206 |
