SKU: FYK35TF-SKF

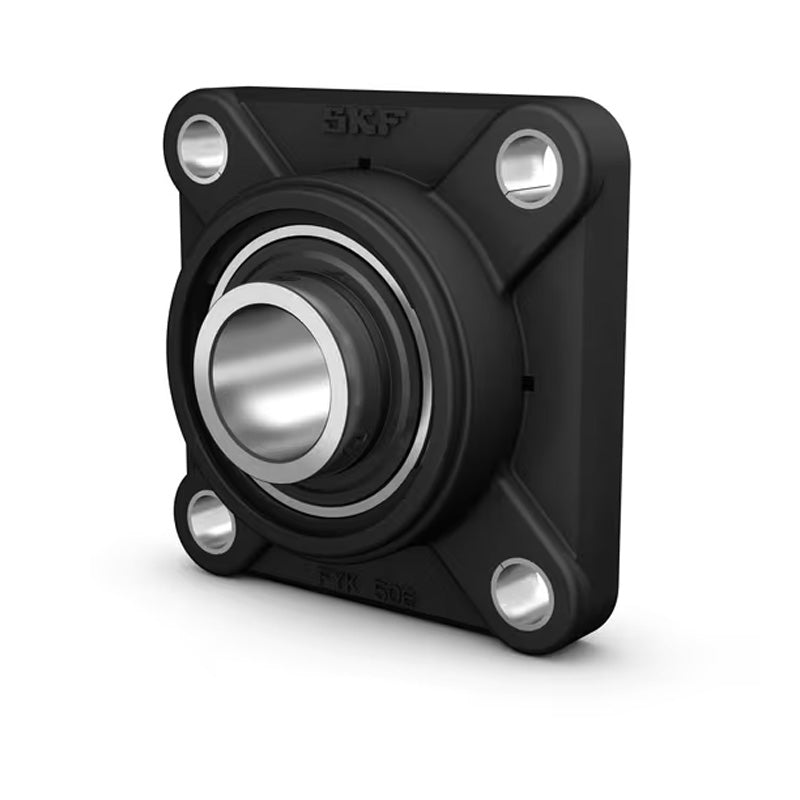

SKF FYK35TF Composite Flanged Unit with a Square Housing with Grub Screw 35mm Insert
SKF FYK35TF Composite Flanged Unit with a Square Housing with Grub Screw 35mm Insert
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
In stock
Price Break
10+
CHF 54.62
20+
CHF 51.55
30+
CHF 50.94
40+
CHF 50.32
50+
CHF 49.71
75+
CHF 49.09
100+
CHF 46.03
200+
CHF 45.41
250+
CHF 44.80
500+
CHF 44.18
1000+
CHF 42.96
Description
Description
| SKF Square Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has a square flange and four bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYK
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 35mm |
| A2 | 17mm |
| B | 42.9mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14.5mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 0.66 kg |
| Compatible end cover closed | ECY207 |
