SKU: FYK35TR-SKF

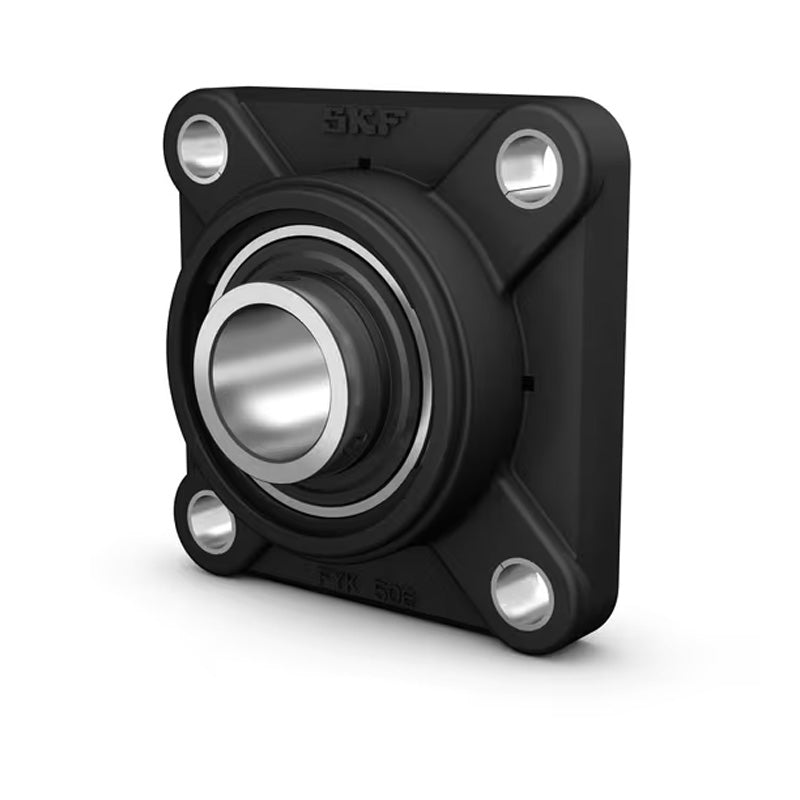

SKF FYK35TR Composite Flanged Unit with a Square Housing with Grub Screw 35mm Insert
SKF FYK35TR Composite Flanged Unit with a Square Housing with Grub Screw 35mm Insert
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
10+
CHF 59.26
20+
CHF 55.93
30+
CHF 55.26
40+
CHF 54.60
50+
CHF 53.93
75+
CHF 53.27
100+
CHF 49.94
200+
CHF 49.27
250+
CHF 48.60
500+
CHF 47.94
1000+
CHF 46.61
Description
Description
| SKF Square Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has a square flange and four bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYK
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 35mm |
| A2 | 17mm |
| B | 42.9mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14.5mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 22mm |
| Weight | 0.66 kg |
| Compatible end cover closed | ECY207 |
