SKU: FYT1.1/4TF/VA201-SKF

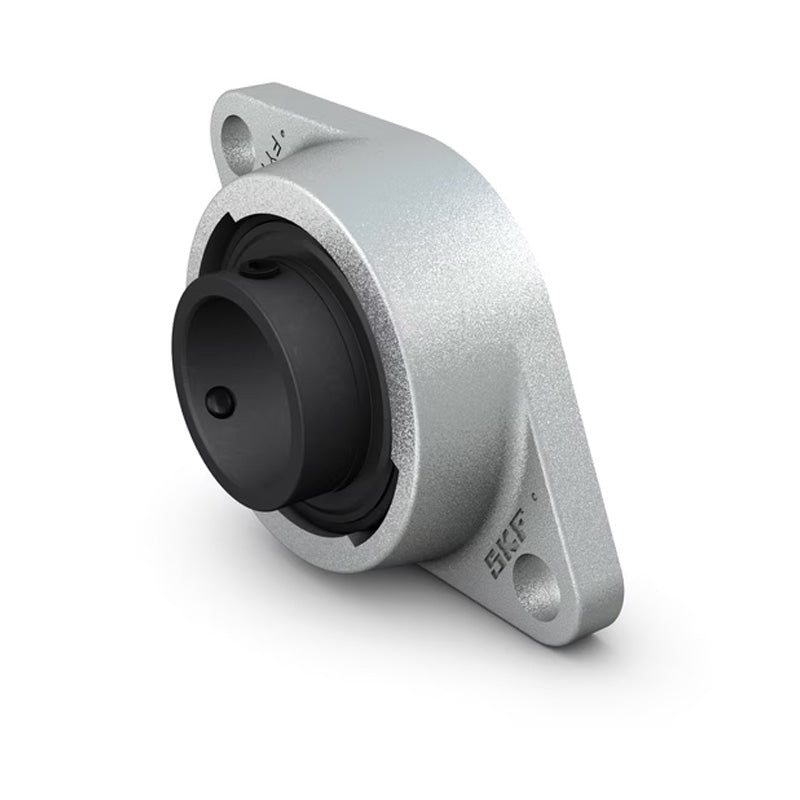

SKF FYT114TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
SKF FYT114TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
Regular price
CHF 221.00
ex VAT
Regular price
Sale price
CHF 221.00
ex VAT
In stock
Price Break
10+
CHF 175.56
19+
CHF 165.69
29+
CHF 163.72
39+
CHF 161.75
49+
CHF 159.78
74+
CHF 157.80
99+
CHF 147.94
199+
CHF 145.97
249+
CHF 144.00
499+
CHF 142.02
999+
CHF 138.08
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| H | 156mm |
| J | 130.2mm |
| L | 96mm |
| N | 14.3mm |
| G | 12mm |
| T | 46.4mm |
| Static load Co | 15.3 kN |
| Weight | 1.25 kg |
