SKU: FYT2.TF-SKF

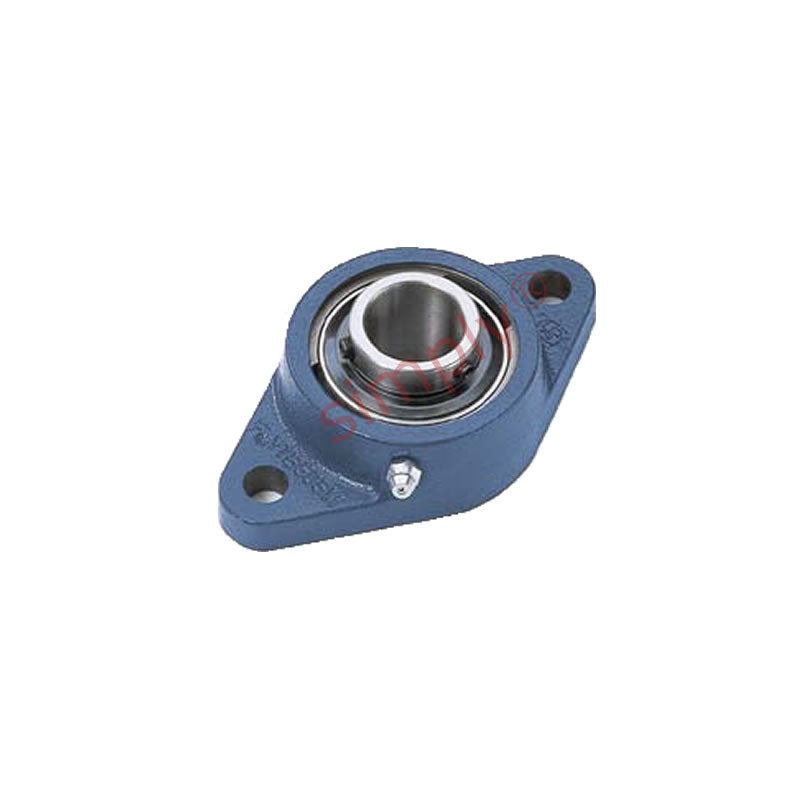

SKF FYT2TF Oval Cast Housing with Grub Screw 2 inch Insert
SKF FYT2TF Oval Cast Housing with Grub Screw 2 inch Insert
Regular price
CHF 110.00
ex VAT
Regular price
Sale price
CHF 110.00
ex VAT
In stock
Price Break
10+
CHF 87.15
20+
CHF 82.25
30+
CHF 81.27
40+
CHF 80.29
50+
CHF 79.31
75+
CHF 78.33
100+
CHF 73.44
200+
CHF 72.46
250+
CHF 71.48
500+
CHF 70.50
1000+
CHF 68.54
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- FYT
- Bolt Hole Centres:
- 184.2mm
Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.6mm |
| A2 | 20.6mm |
| B | 55.6mm |
| H | 216mm |
| J | 184.2mm |
| L | 127mm |
| N | 19mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 62.8mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.45 kg |
| Housing | Insert |
