SKU: FYT2.TF/VA201-SKF

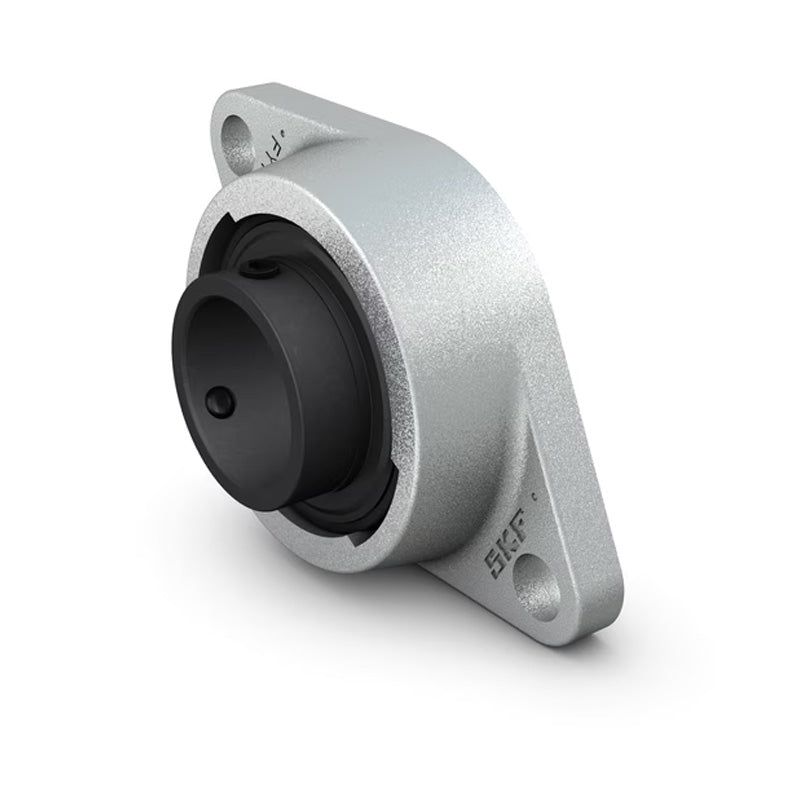

SKF FYT2TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 2 inch
SKF FYT2TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 2 inch
Regular price
CHF 304.35
ex VAT
Regular price
Sale price
CHF 304.35
ex VAT
In stock
Price Break
10+
CHF 270.87
19+
CHF 255.65
29+
CHF 252.61
39+
CHF 249.57
49+
CHF 246.52
74+
CHF 243.48
99+
CHF 228.26
199+
CHF 225.22
249+
CHF 222.18
499+
CHF 219.13
999+
CHF 213.05
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.6mm |
| A2 | 20.6mm |
| B | 55.6mm |
| H | 215.9mm |
| J | 184.2mm |
| L | 127mm |
| N | 19mm |
| G | 16mm |
| T | 62.8mm |
| Static load Co | 29 kN |
| Weight | 3.3 kg |
