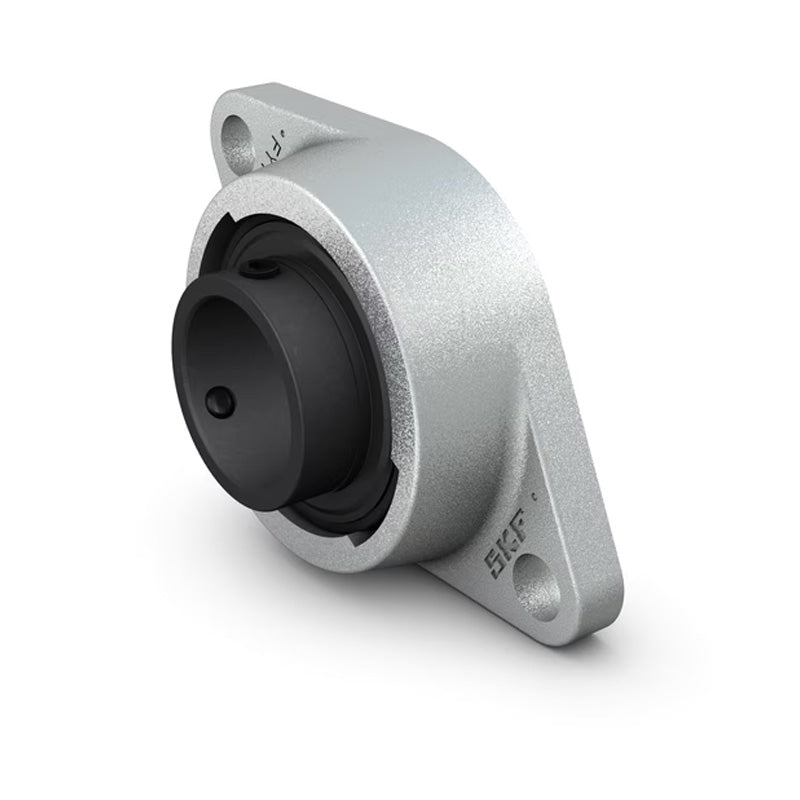

• SKF FYT34TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch
1 1

SKU: FYT3/4TF/VA228-SKF

SKF FYT34TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch

SKF FYT34TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch
CHF 105.00 ex VAT
CHF 105.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 83.48
19+ CHF 78.79
29+ CHF 77.85
39+ CHF 76.92
49+ CHF 75.98
74+ CHF 75.04
99+ CHF 70.35
199+ CHF 69.41
249+ CHF 68.47
499+ CHF 67.54
999+ CHF 65.66
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Temperature Range:
High Temp
Technical
d 3/4 inch
A1 24.6mm
A2 11.11mm
B 31mm
H 112mm
J 89.7mm
L 60.5mm
N 11.1mm
G 10mm
T 32.6mm
Static load Co 6.55 kN
Weight 0.5 kg
