SKU: FYT30TF/VA201-SKF

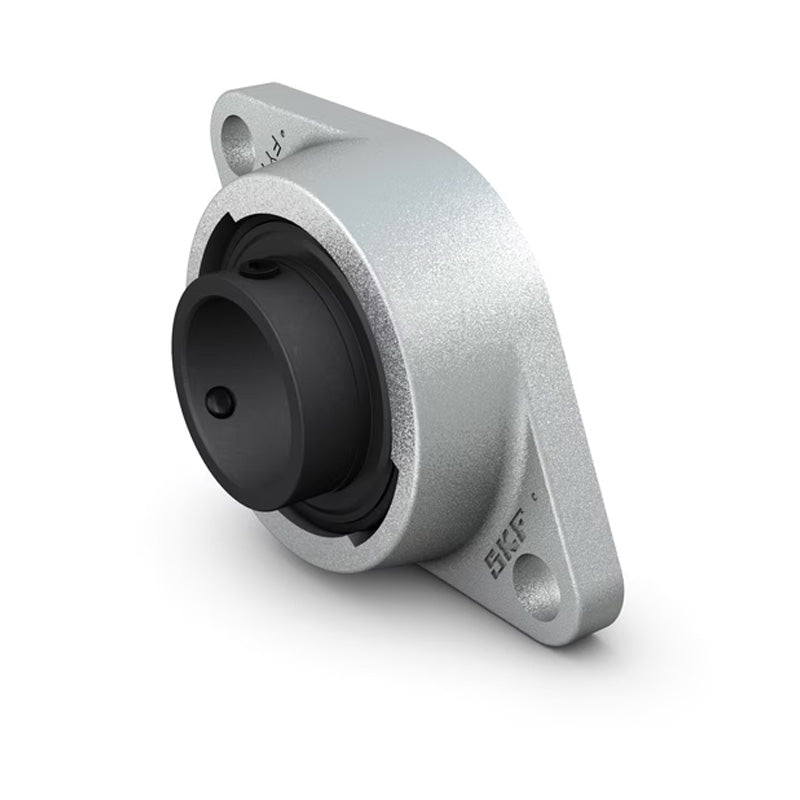

SKF FYT30TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
SKF FYT30TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
Regular price
CHF 203.00
ex VAT
Regular price
Sale price
CHF 203.00
ex VAT
In stock
Price Break
10+
CHF 161.12
19+
CHF 152.06
29+
CHF 150.25
39+
CHF 148.44
49+
CHF 146.63
74+
CHF 144.82
99+
CHF 135.77
199+
CHF 133.96
249+
CHF 132.15
499+
CHF 130.34
999+
CHF 126.72
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 38.1mm |
| H | 141.5mm |
| J | 116.7mm |
| L | 83mm |
| N | 12.7mm |
| G | 10mm |
| T | 42.2mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 0.93 kg |
