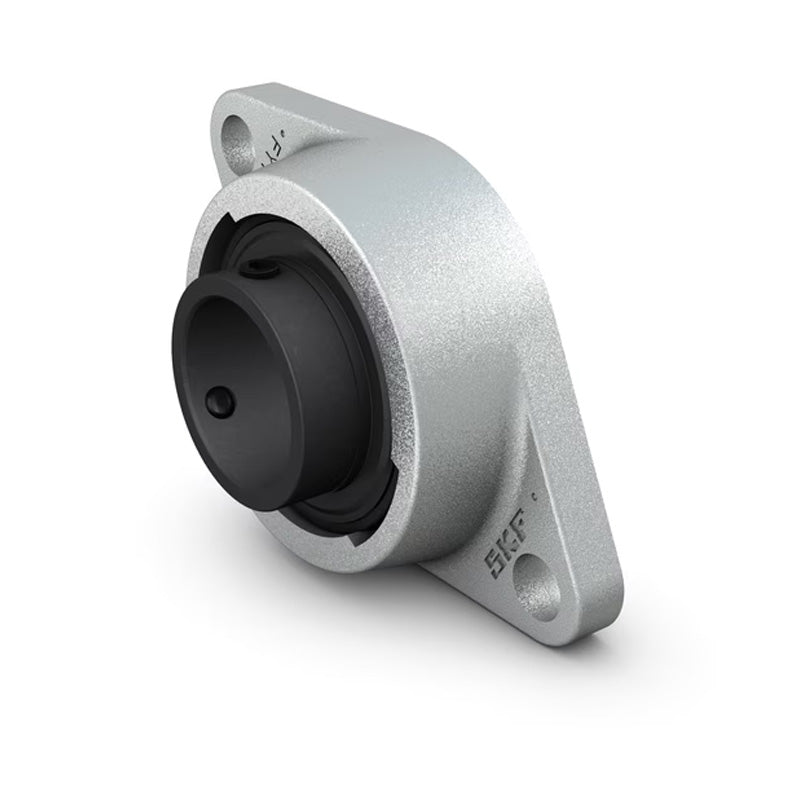

• SKF FYT30TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
1 1

SKU: FYT30TF/VA228-SKF

SKF FYT30TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm

SKF FYT30TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
CHF 223.00 ex VAT
CHF 223.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 177.22
19+ CHF 167.27
29+ CHF 165.27
39+ CHF 163.28
49+ CHF 161.29
74+ CHF 159.30
99+ CHF 149.34
199+ CHF 147.35
249+ CHF 145.36
499+ CHF 143.37
999+ CHF 139.39
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Temperature Range:
High Temp
Technical
d 30mm
A1 32.5mm
A2 13mm
B 38.1mm
H 141.5mm
J 116.7mm
L 83mm
N 12.7mm
G 10mm
T 42.2mm
Dynamic load C 19.5 kN
Static load Co 11.2 kN
Weight 0.93 kg
