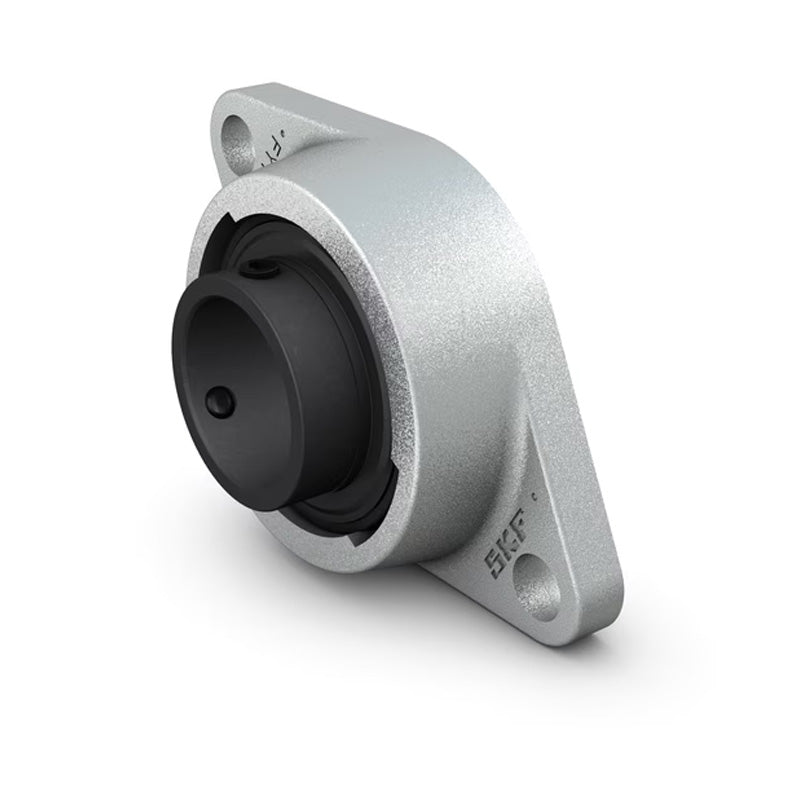

• SKF FYT45TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
1 1

SKU: FYT45TF/VA201-SKF

SKF FYT45TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm

SKF FYT45TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
CHF 283.00 ex VAT
CHF 283.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 225.33
19+ CHF 212.67
29+ CHF 210.14
39+ CHF 207.61
49+ CHF 205.08
74+ CHF 202.55
99+ CHF 189.89
199+ CHF 187.36
249+ CHF 184.82
499+ CHF 182.29
999+ CHF 177.23
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Temperature Range:
High Temp
Technical
d 45mm
A1 39mm
A2 14mm
B 49.2mm
H 178.5mm
J 148.5mm
L 111mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 1.8 kg
