SKU: FYTB1.TF-SKF

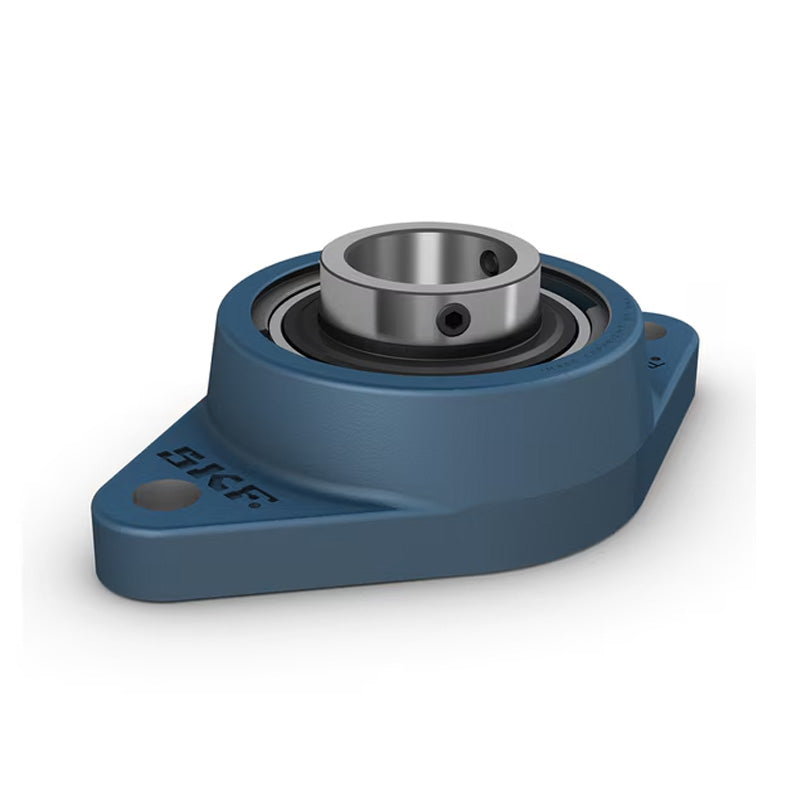

SKF FYTB1TF Square Cast Housing with Grub Screw 1 inch Insert
SKF FYTB1TF Square Cast Housing with Grub Screw 1 inch Insert
Regular price
CHF 66.00
ex VAT
Regular price
Sale price
CHF 66.00
ex VAT
In stock
Price Break
10+
CHF 51.87
20+
CHF 48.95
30+
CHF 48.37
40+
CHF 47.79
50+
CHF 47.21
75+
CHF 46.62
100+
CHF 43.71
200+
CHF 43.13
250+
CHF 42.54
500+
CHF 41.96
1000+
CHF 40.80
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- FYTB
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 1 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| Da | 63.5mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.63 kg |
| Housing | FYTB505M |
| Insert | YAR205-100-2F |
