SKU: FYTB20WF-SKF

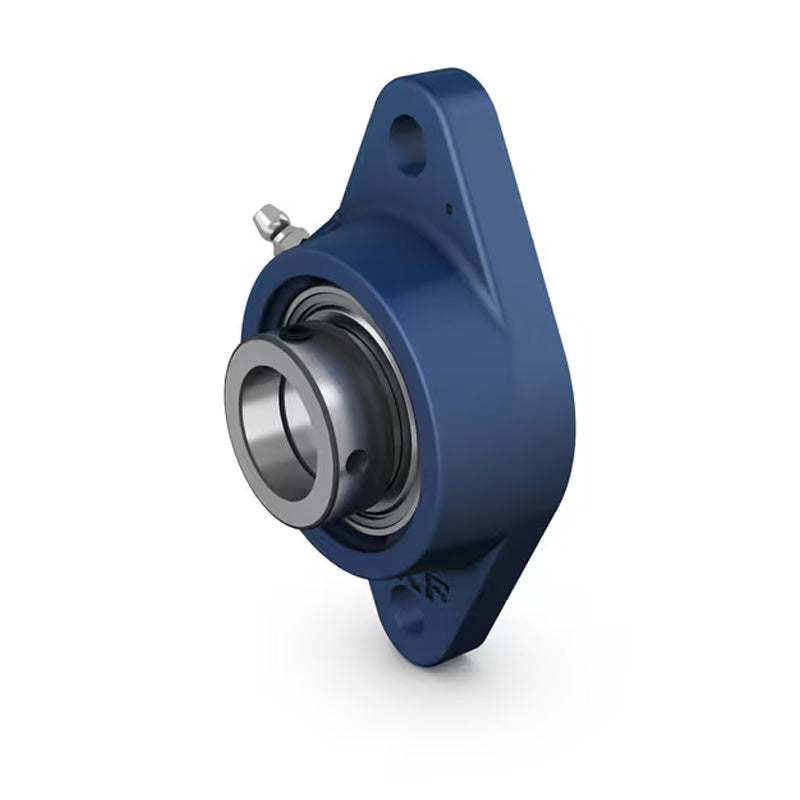

SKF FYTB20WF Oval Cast Housing with Grub Screw 20mm Insert
SKF FYTB20WF Oval Cast Housing with Grub Screw 20mm Insert
Regular price
CHF 52.00
ex VAT
Regular price
Sale price
CHF 52.00
ex VAT
In stock
Price Break
10+
CHF 41.36
20+
CHF 39.04
30+
CHF 38.57
40+
CHF 38.11
50+
CHF 37.64
75+
CHF 37.18
100+
CHF 34.85
200+
CHF 34.39
250+
CHF 33.92
500+
CHF 33.46
1000+
CHF 32.53
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYTB
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B1 | 43.7mm |
| Da | 50.8mm |
| H | 112mm |
| J | 90mm |
| L | 60.5mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.6mm |
| T | 45.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.55 kg |
| Compatible end cover closed | ECY204 |
