SKU: FYTB25WF-SKF

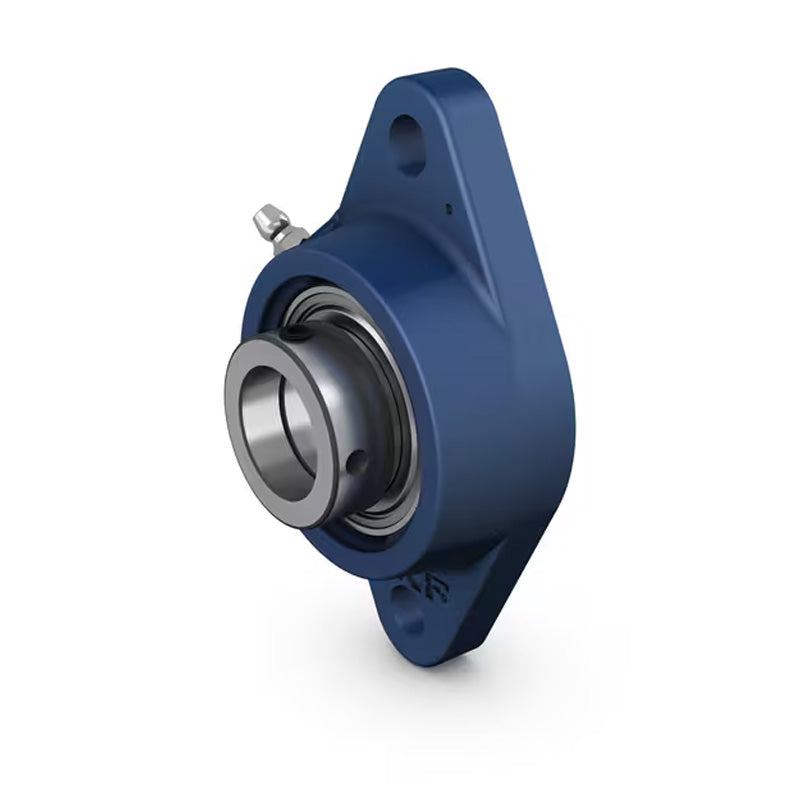

SKF FYTB25WF Oval Cast Housing with Grub Screw 25mm Insert
SKF FYTB25WF Oval Cast Housing with Grub Screw 25mm Insert
Regular price
CHF 58.46
ex VAT
Regular price
Sale price
CHF 58.46
ex VAT
In stock
Price Break
10+
CHF 52.03
19+
CHF 49.11
29+
CHF 48.52
39+
CHF 47.94
49+
CHF 47.35
74+
CHF 46.77
99+
CHF 43.85
199+
CHF 43.26
249+
CHF 42.68
499+
CHF 42.09
999+
CHF 40.92
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTB
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B1 | 44.4mm |
| Da | 63.5mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.9mm |
| T | 45.9mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.69 kg |
| Compatible end cover closed | ECY205 |
