• SKF FYTB30FM Oval Cast Housing with Grub Screw 30mm Insert
1 1

SKU: FYTB30FM-SKF

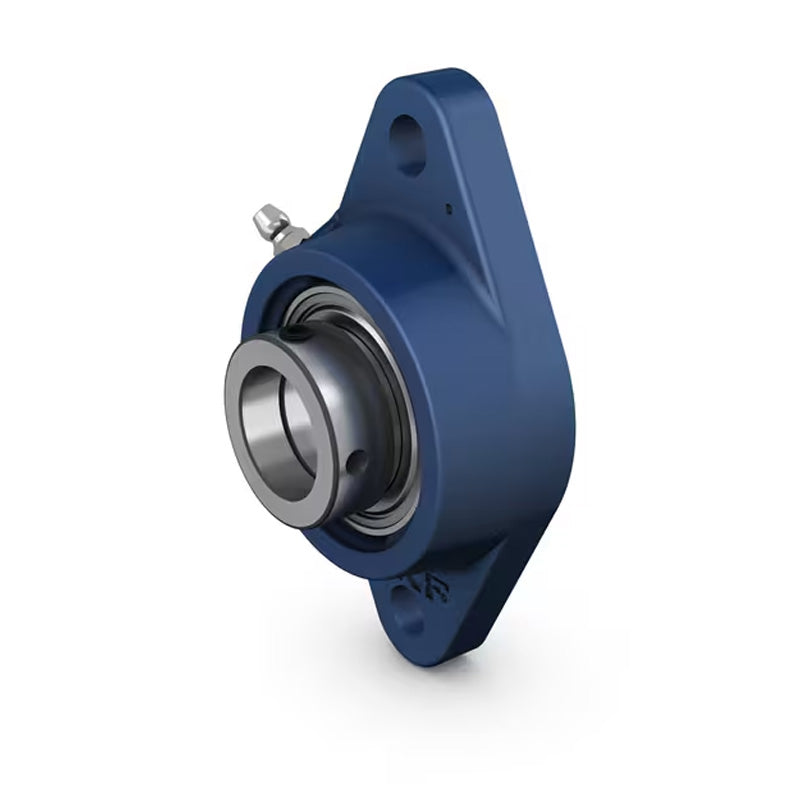

SKF FYTB30FM Oval Cast Housing with Grub Screw 30mm Insert

SKF FYTB30FM Oval Cast Housing with Grub Screw 30mm Insert
CHF 58.00 ex VAT
CHF 58.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 45.66
20+ CHF 43.09
30+ CHF 42.58
40+ CHF 42.07
50+ CHF 41.55
75+ CHF 41.04
100+ CHF 38.47
200+ CHF 37.96
250+ CHF 37.45
500+ CHF 36.94
1000+ CHF 35.91
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Style:
FYTB
Bolt Hole Centres:
116.5mm
Technical
d 30mm
A1 32.5mm
A2 13mm
B1 35.7mm
Da 76.2mm
H 141.5mm
J 116.5mm
L 83mm
N 11.5mm
G 10mm
s1 26.7mm
T 46.7mm
Static load Cr 11.2 kN
Dynamic load Cor 19.5 kN
Fatigue load limit Pu 0.475 kN
Limiting speed 6300 rpm
A5 20mm
Weight 0.95 kg
Compatible end cover closed ECY206
