SKU: FYTB30WF-SKF

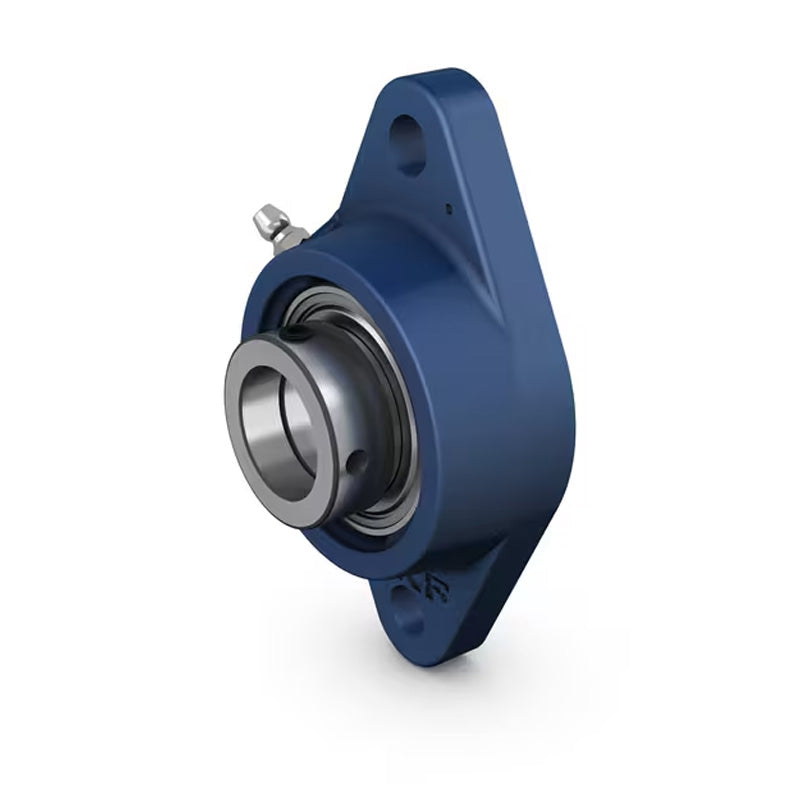

SKF FYTB30WF Oval Cast Housing with Grub Screw 30mm Insert
SKF FYTB30WF Oval Cast Housing with Grub Screw 30mm Insert
Regular price
CHF 71.00
ex VAT
Regular price
Sale price
CHF 71.00
ex VAT
In stock
Price Break
10+
CHF 56.17
20+
CHF 53.01
30+
CHF 52.38
40+
CHF 51.75
50+
CHF 51.12
75+
CHF 50.49
100+
CHF 47.33
200+
CHF 46.70
250+
CHF 46.07
500+
CHF 45.44
1000+
CHF 44.18
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYTB
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B1 | 48.4mm |
| Da | 76.2mm |
| H | 141.5mm |
| J | 116.5mm |
| L | 83mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 30.1mm |
| T | 50.1mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| A5 | 20mm |
| Weight | 1 kg |
| Compatible end cover closed | ECY206 |
