SKU: FYTB40FM-SKF
SKF FYTB40FM Oval Cast Housing with Grub Screw 40mm Insert
SKF FYTB40FM Oval Cast Housing with Grub Screw 40mm Insert
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
In stock
Price Break
10+
CHF 62.53
20+
CHF 59.02
30+
CHF 58.32
40+
CHF 57.61
50+
CHF 56.91
75+
CHF 56.21
100+
CHF 52.70
200+
CHF 51.99
250+
CHF 51.29
500+
CHF 50.59
1000+
CHF 49.18
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYTB
- Bolt Hole Centres:
- 143.5mm
Technical
Technical

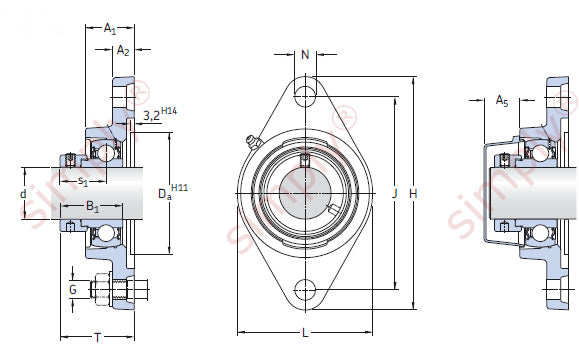

| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B1 | 43.7mm |
| Da | 88.9mm |
| H | 171.5mm |
| J | 143.5mm |
| L | 102mm |
| N | 14mm |
| G | 12mm |
| s1 | 32.7mm |
| T | 56.7mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| A5 | 23.5mm |
| Weight | 1.7 kg |
| Compatible end cover closed | ECY208 |
